Here, relaxation begins even before you set off. With the compact space-saving ERIBA Novaline, even packing feels like a holiday. The generous storage space has room for everything you need on your trip. The pleasant standing height, low weight, cosy seating area and comfortable sleeping arrangements for up to 5 people provide even more comfort. So what are you waiting for? With the ERIBA Novaline, your holiday begins at home.

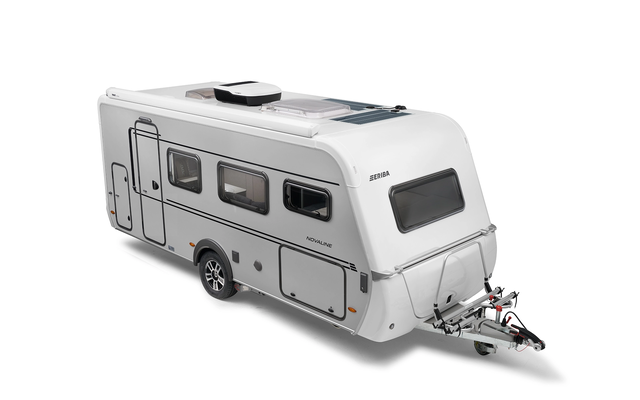

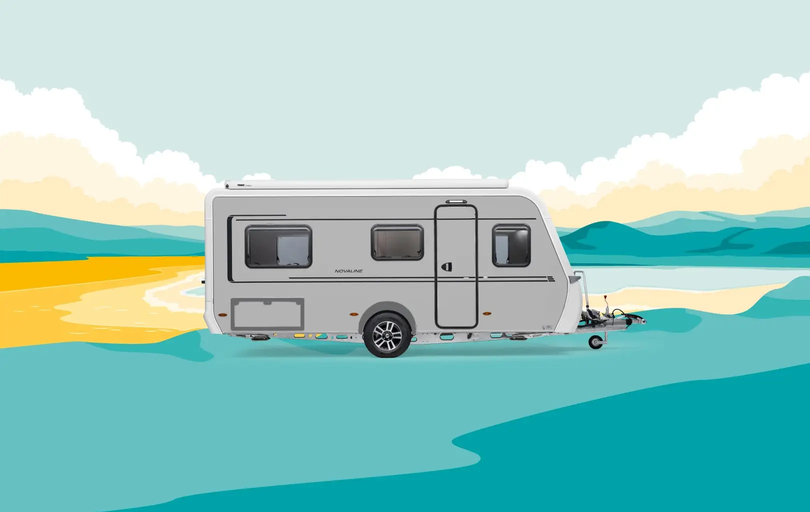

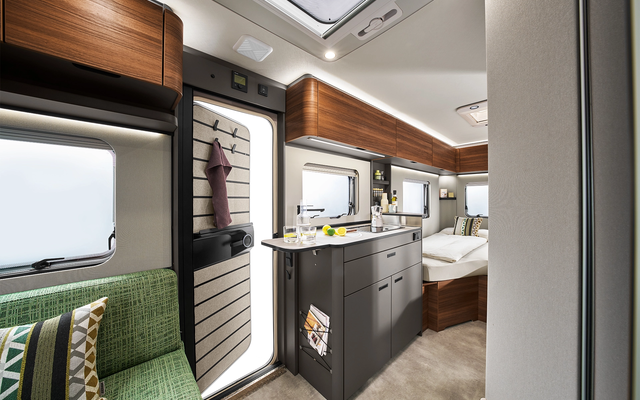

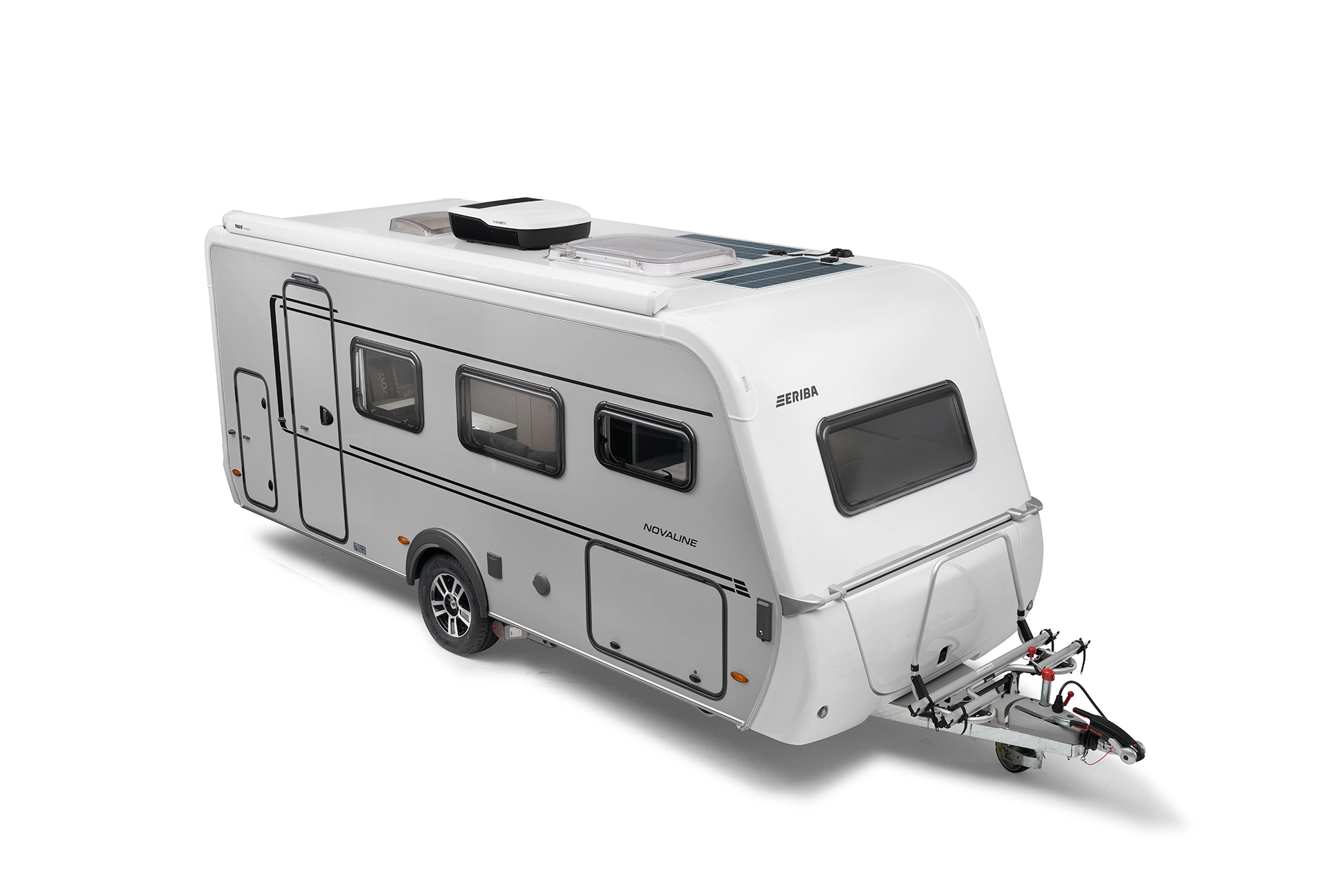

Despite its compact exterior dimensions, the ERIBA Novaline offers an unexpectedly large number of clever details. Comfortable seating and sleeping areas, modern design, and flexible assembly solutions are just a few of the features that make vacations even more relaxing.

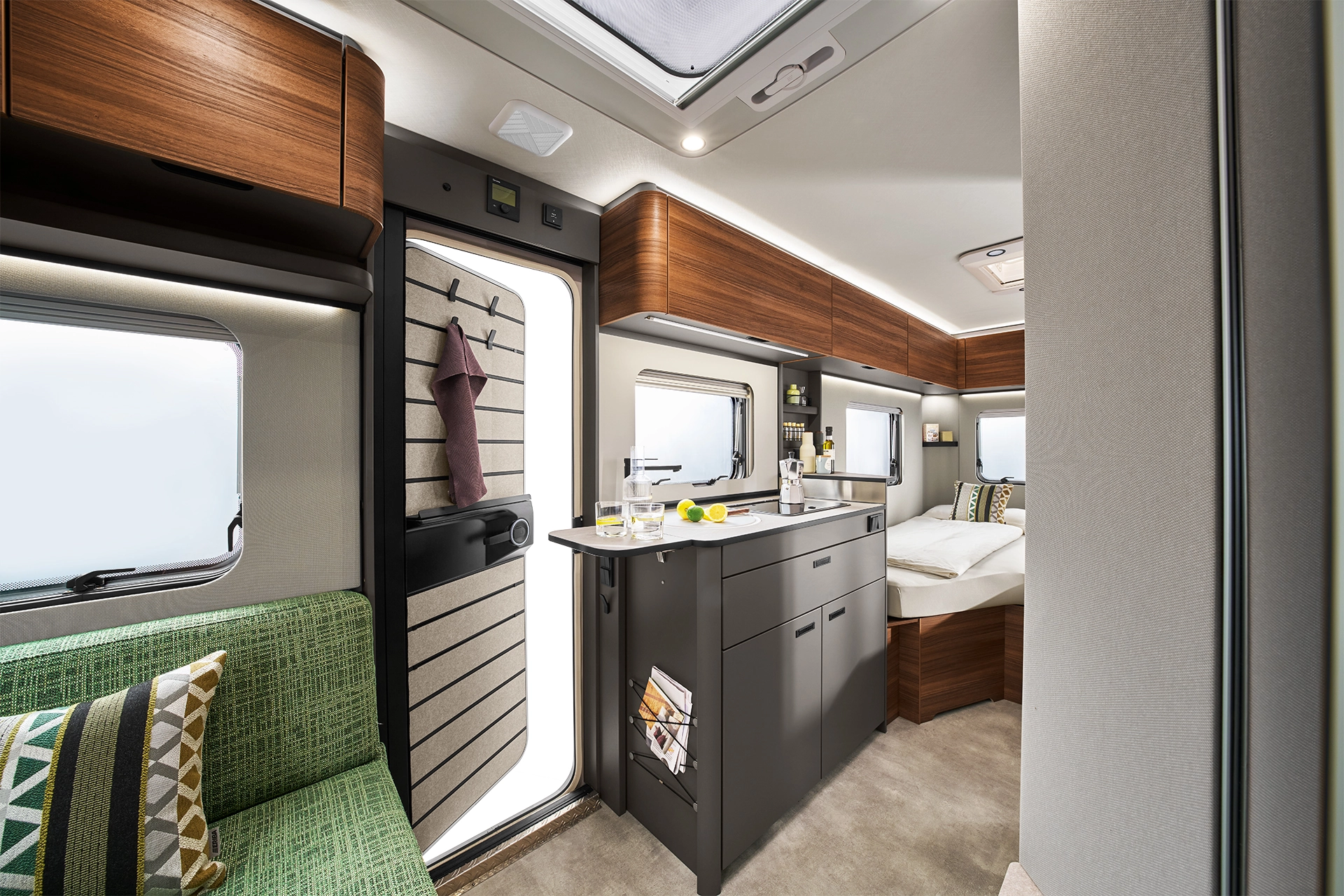

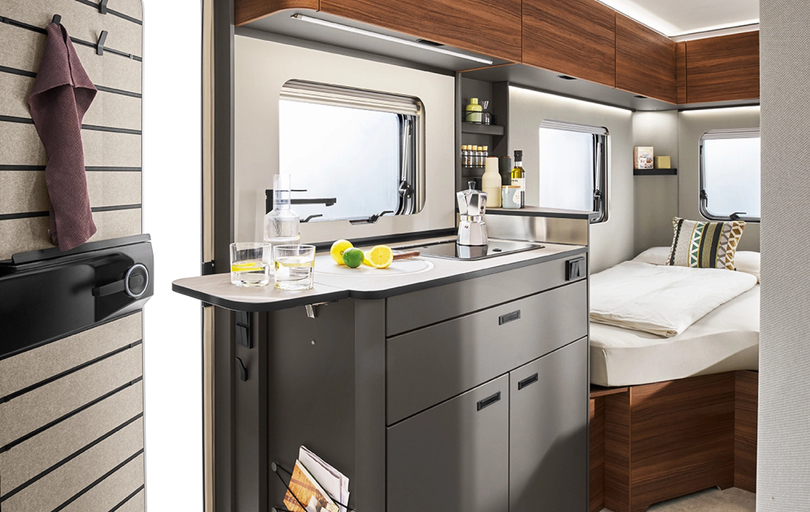

Warm wood combined with natural tones – that's the new Biarritz furniture decor. You can add individual accents with one of four new fabric designs.
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 29990 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:

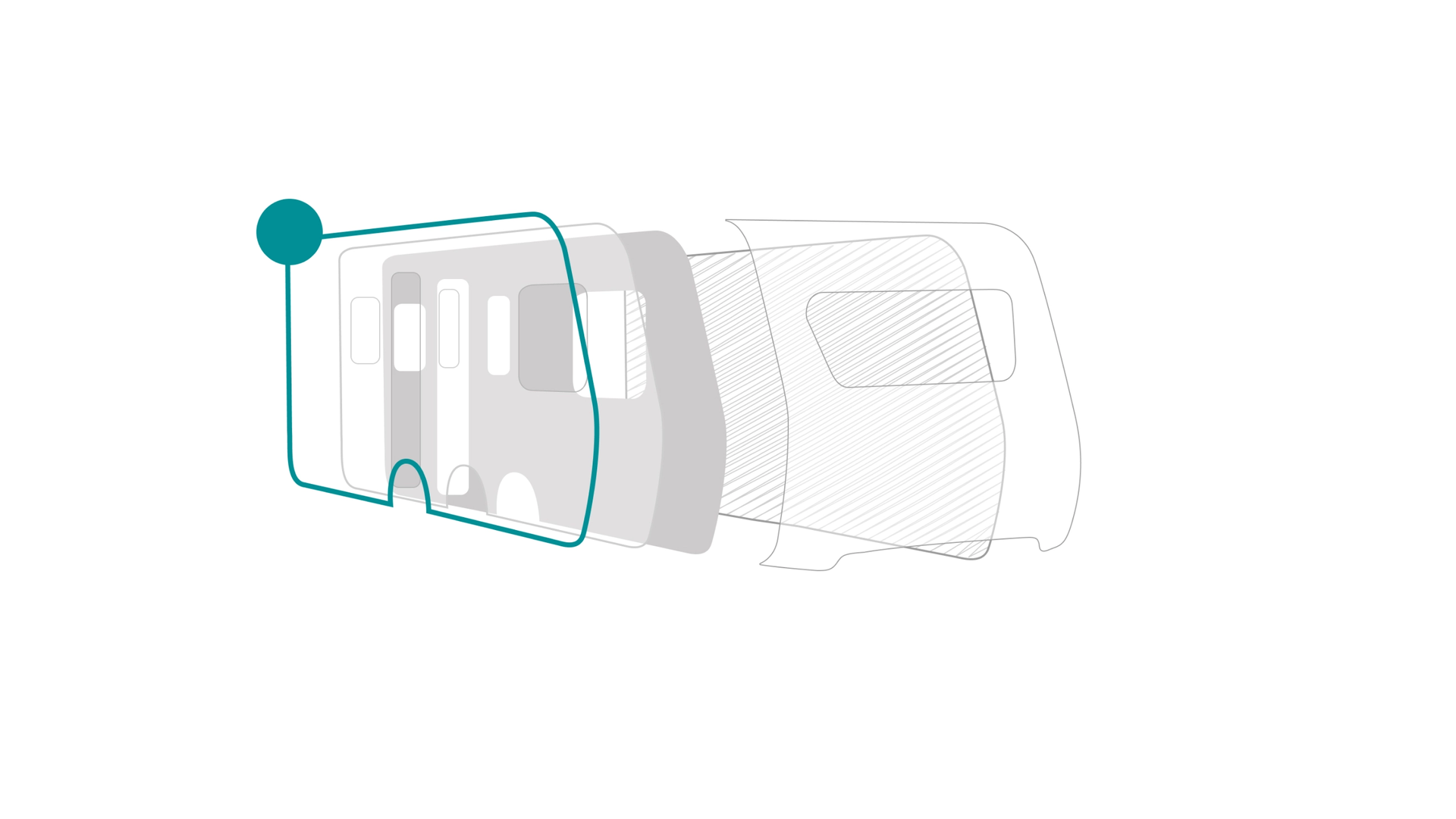

Length / Width / Height (cm) | 664 / 216 / 254 |
Body length (exterior) (cm) | 548 |
Interior length (cm) | 490 |
Interior width (cm) | 200 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 920 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Rear 100 x 40 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1175 (1116 - 1234)* |
Manufacturer-specified mass for optional equipment (kg)* | 20 |
Technically permissible maximum laden mass (kg)* | 1300 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |

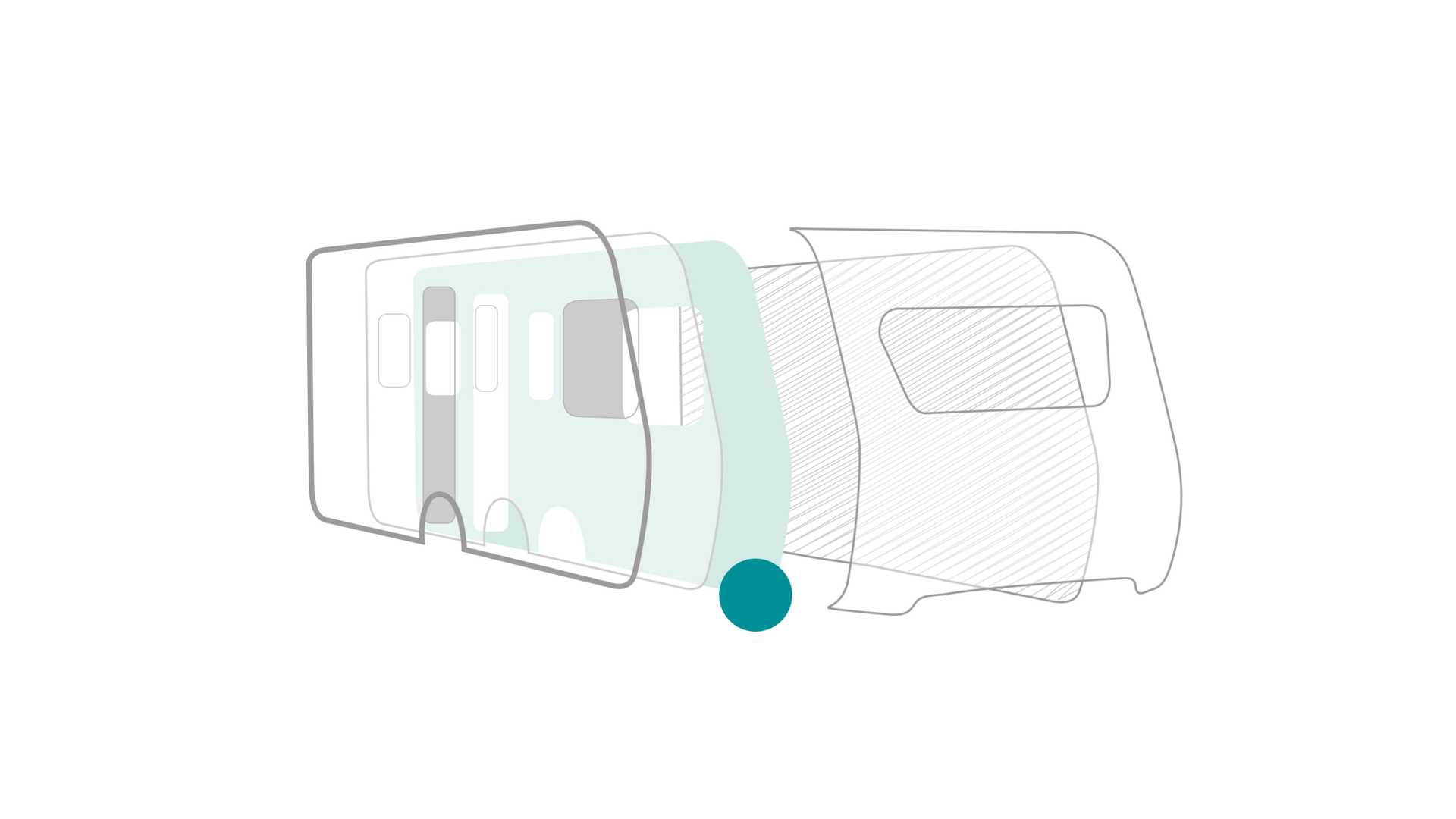

Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 2 - 4 (○) |
Interior:

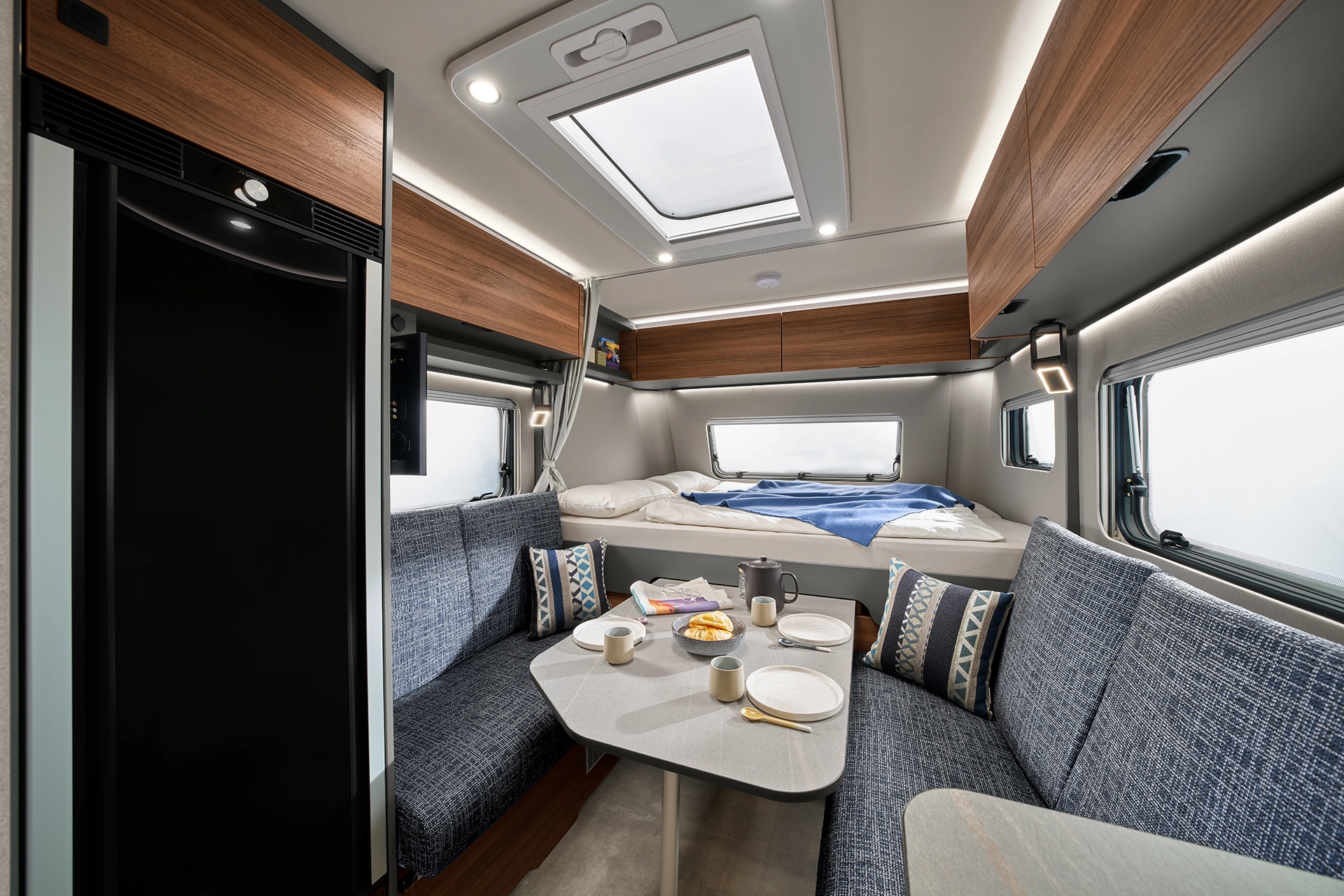

Bed dimension: Front bed, L x W (cm) | 197 x 105 - 109 |
Bed dimension: Rear bed, L x W (cm) | 194 - 209 x 191 |
Berths | 3 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 133 (12) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|

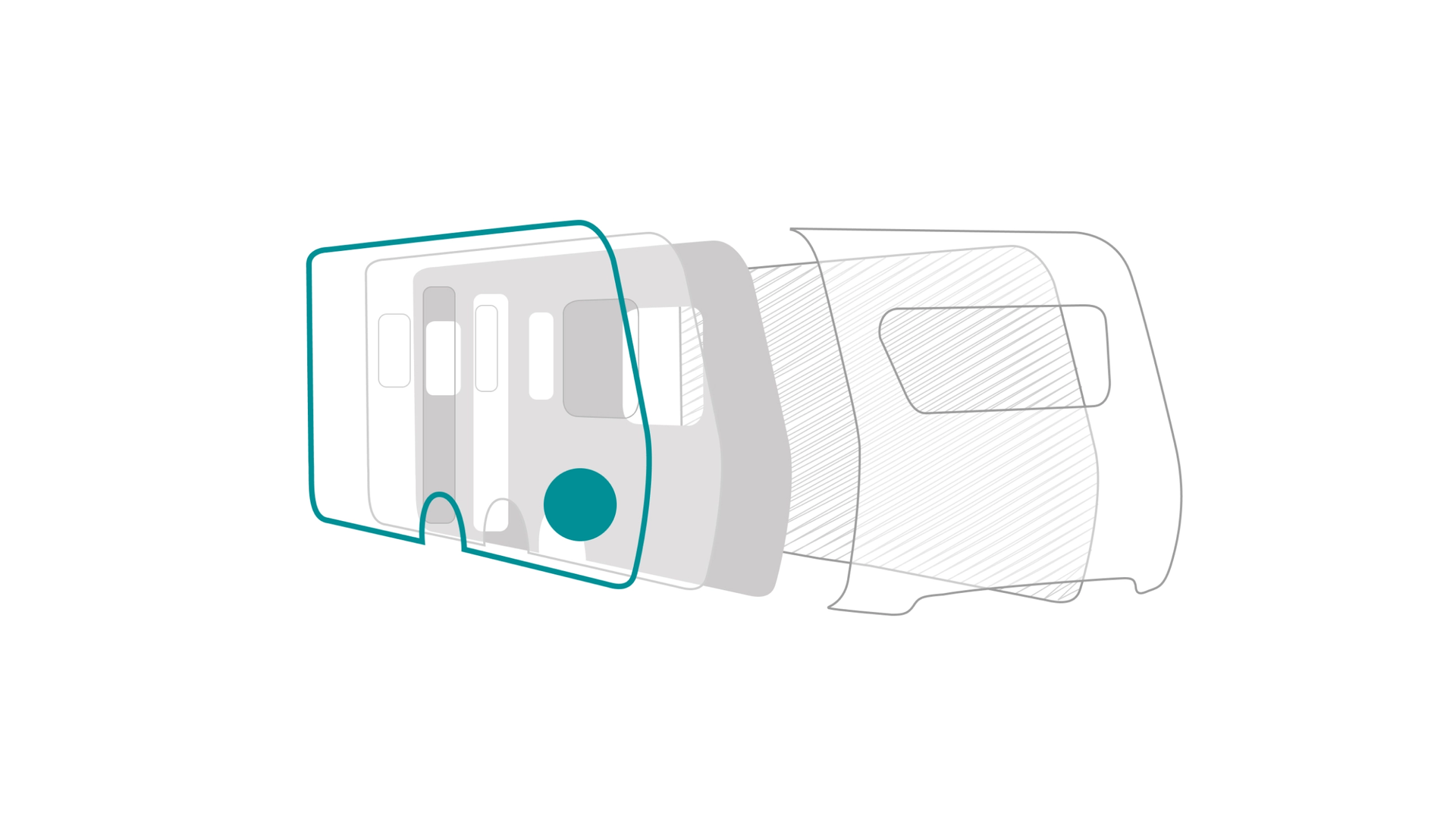

Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |

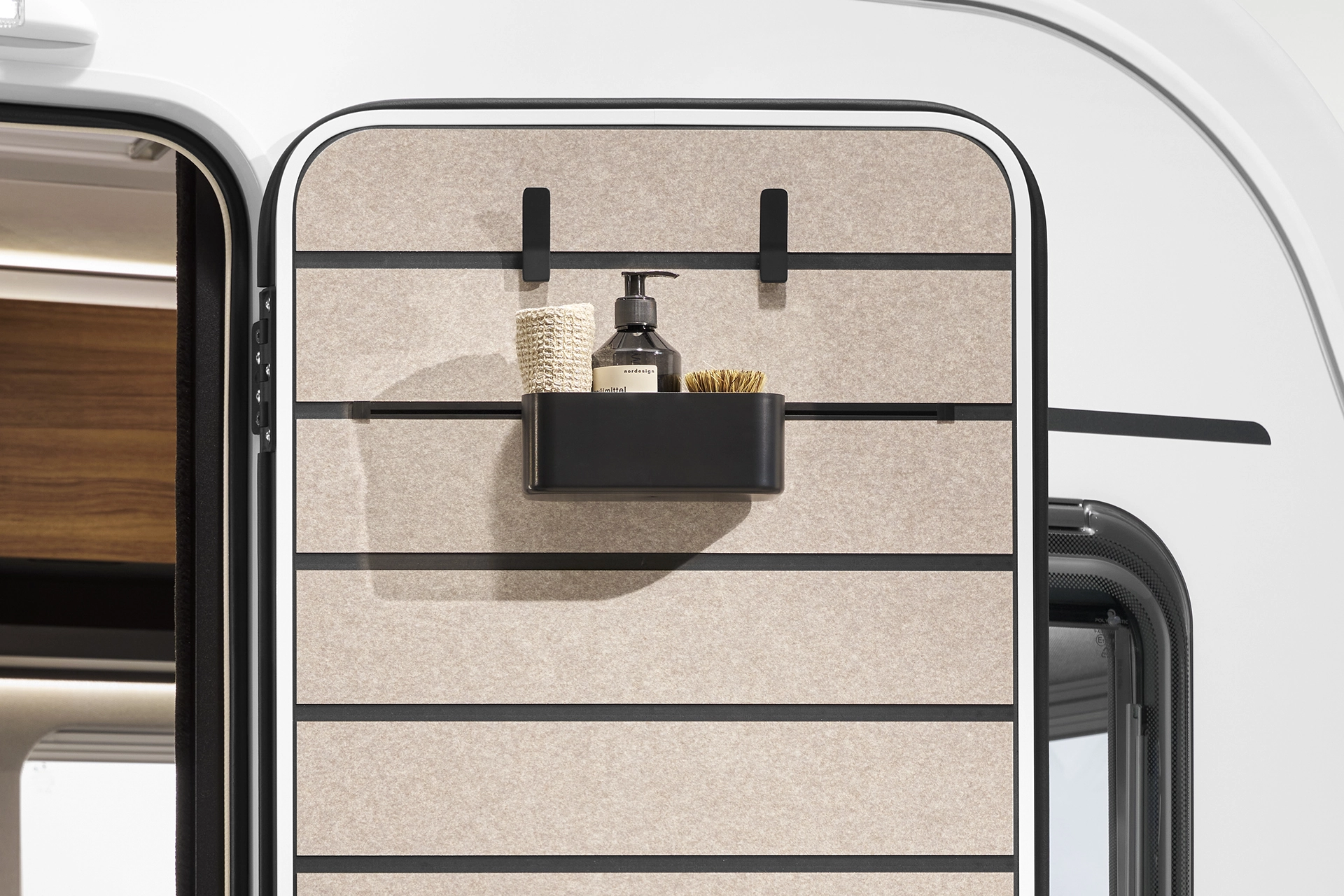

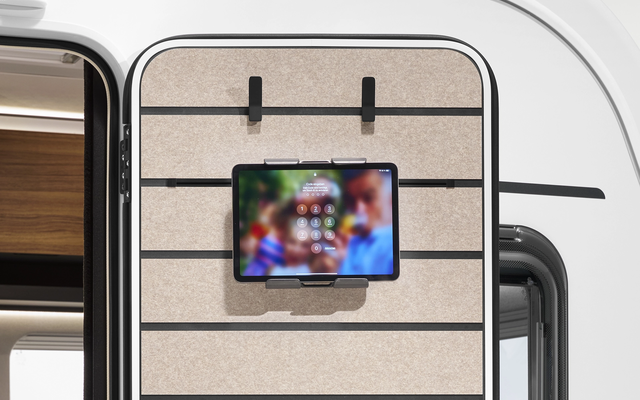

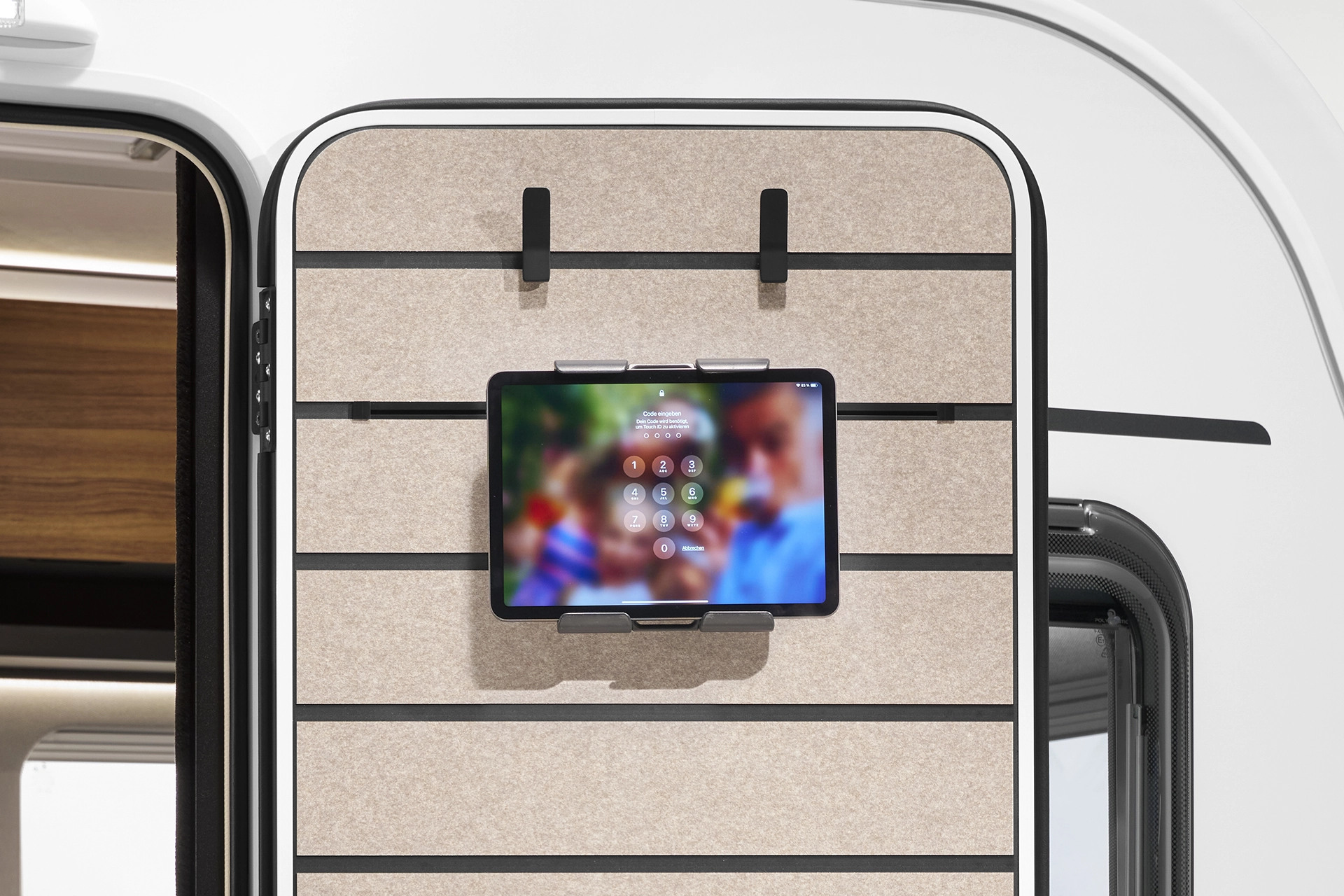

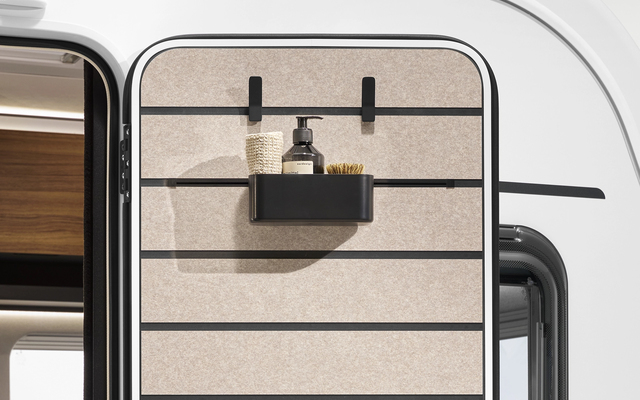

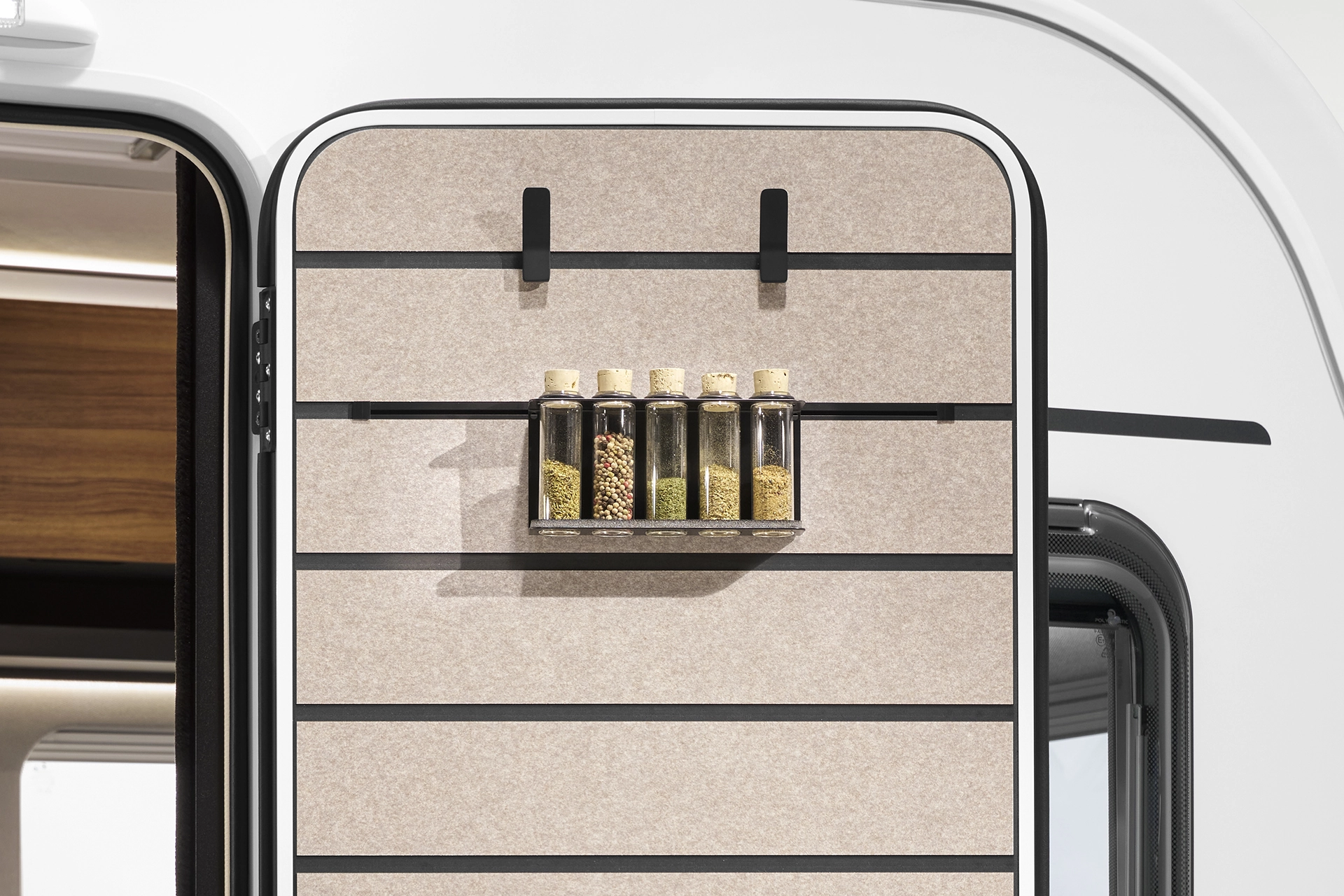

One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |

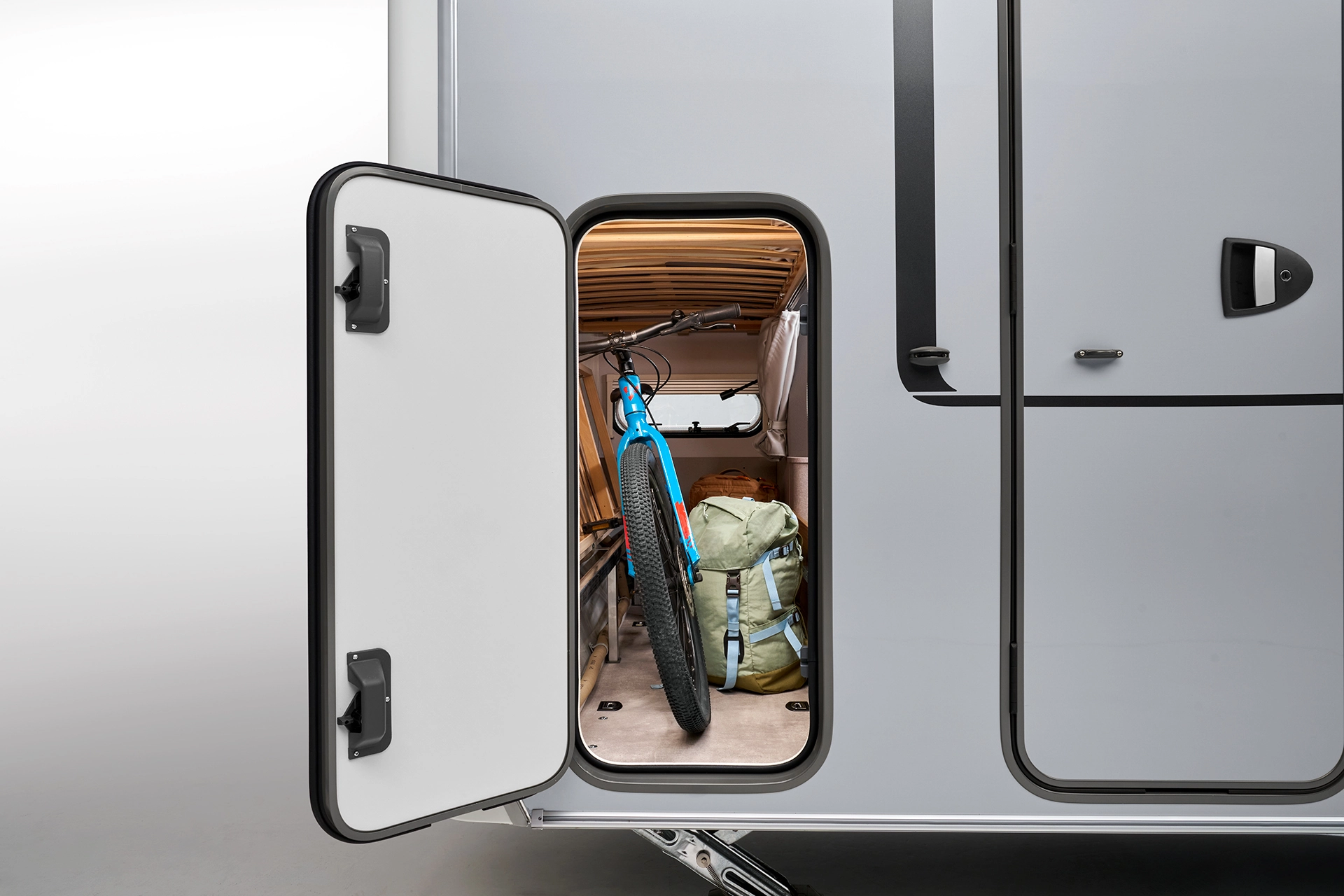

External storage flap, 100 x 40 cm, RH side, rear |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|

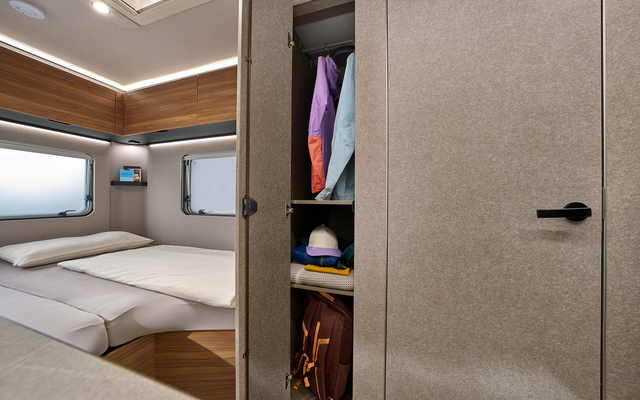

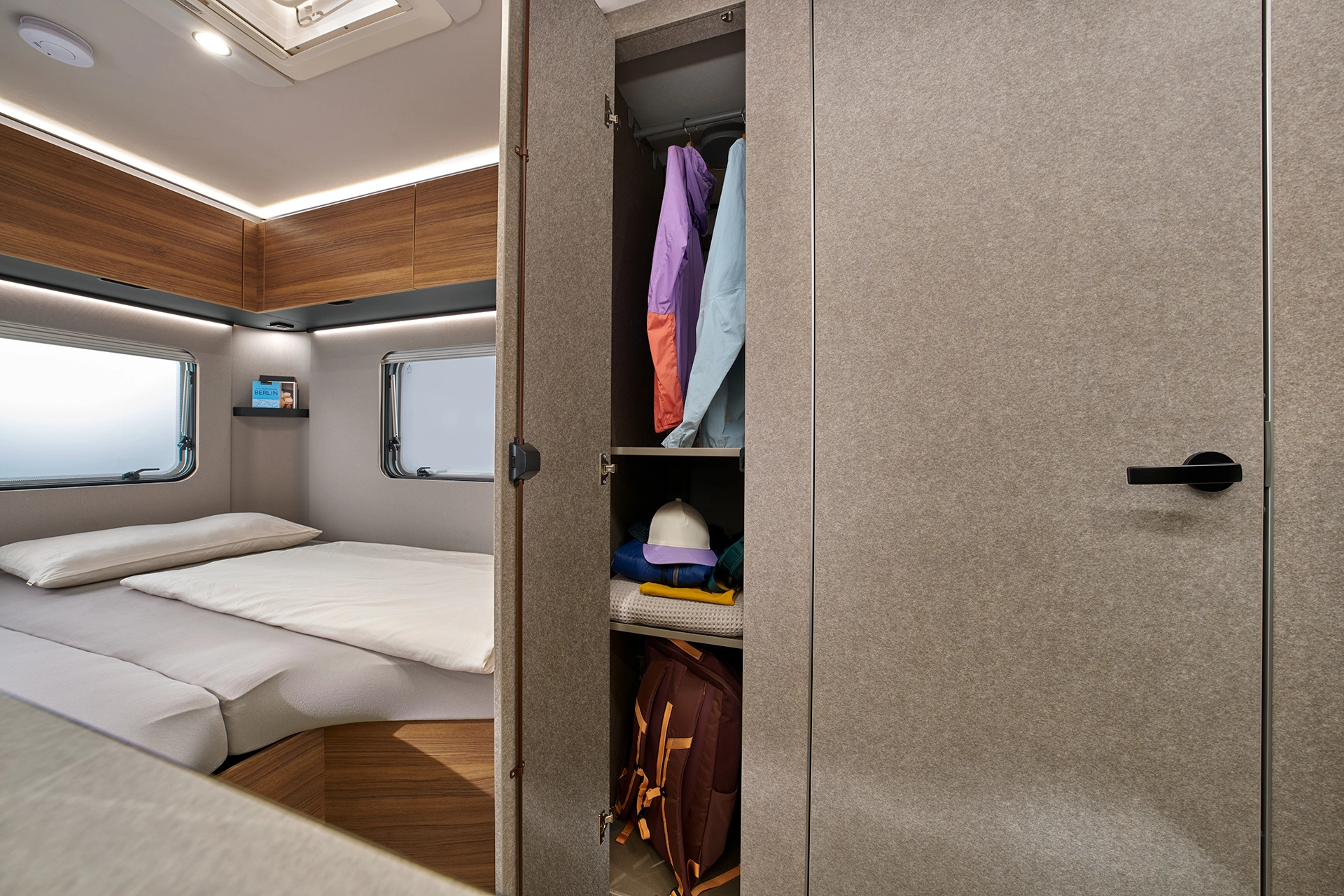

Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |

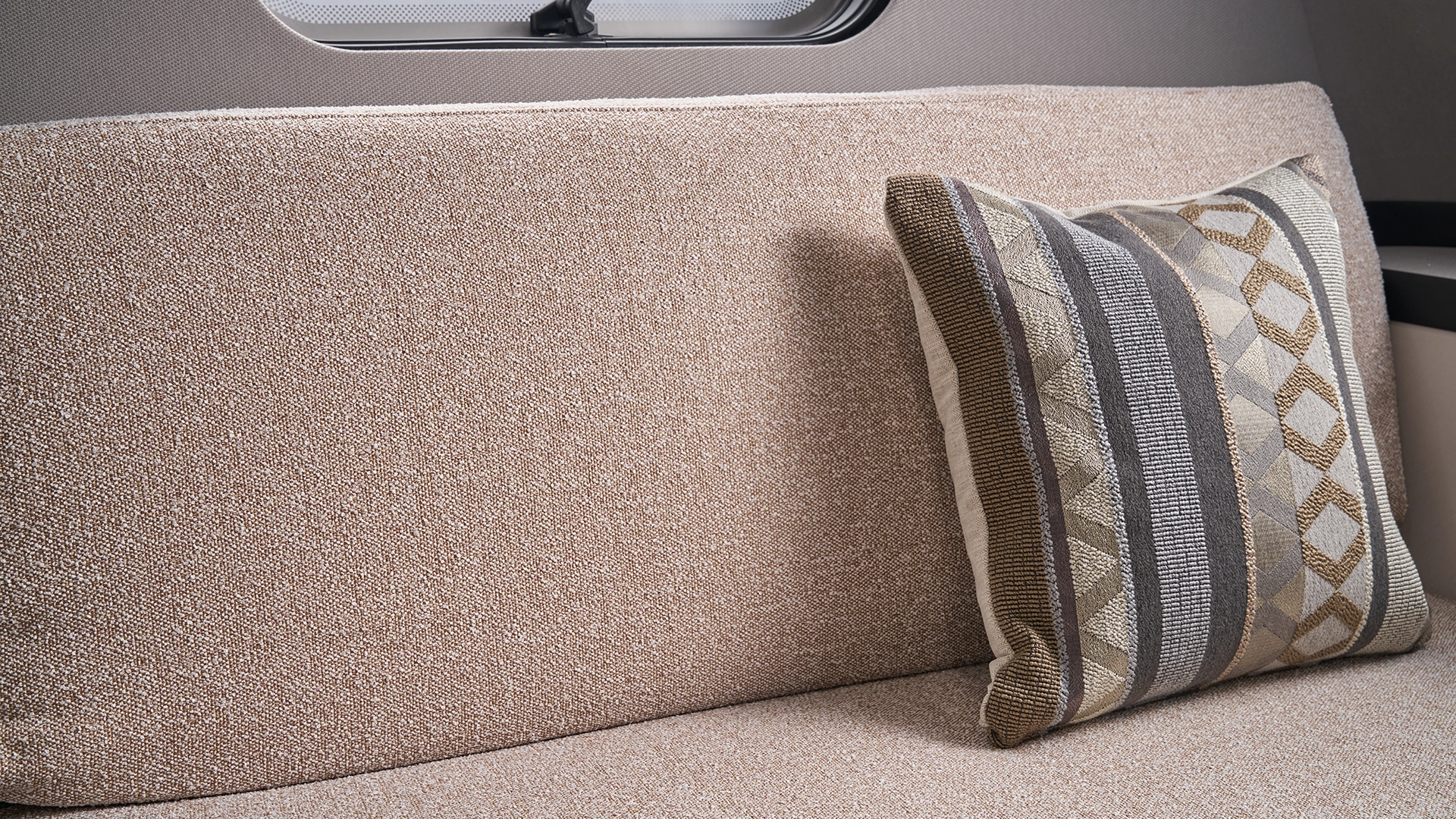

Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|

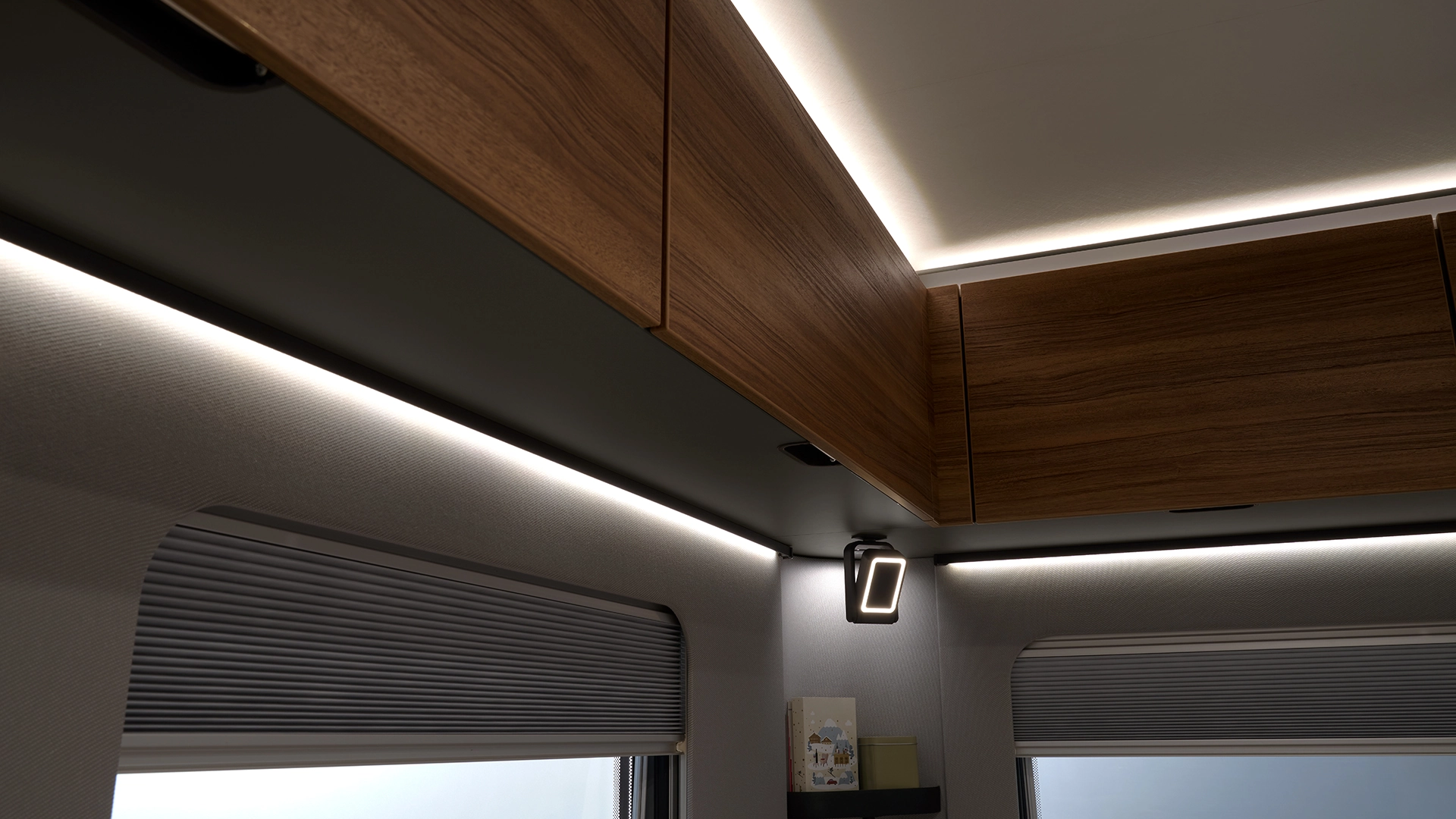

Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |

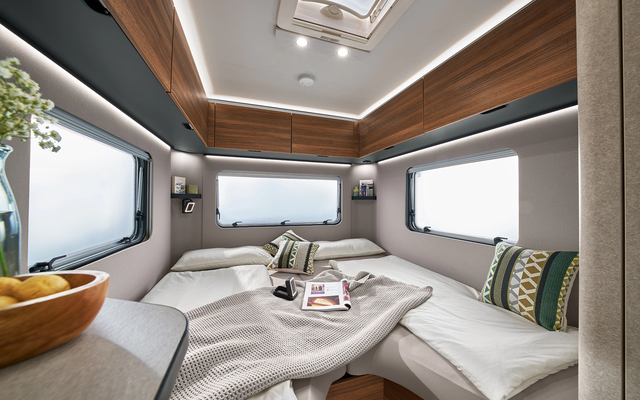

All fixed beds with cold foam mattresses with removable and washable mattress covers |

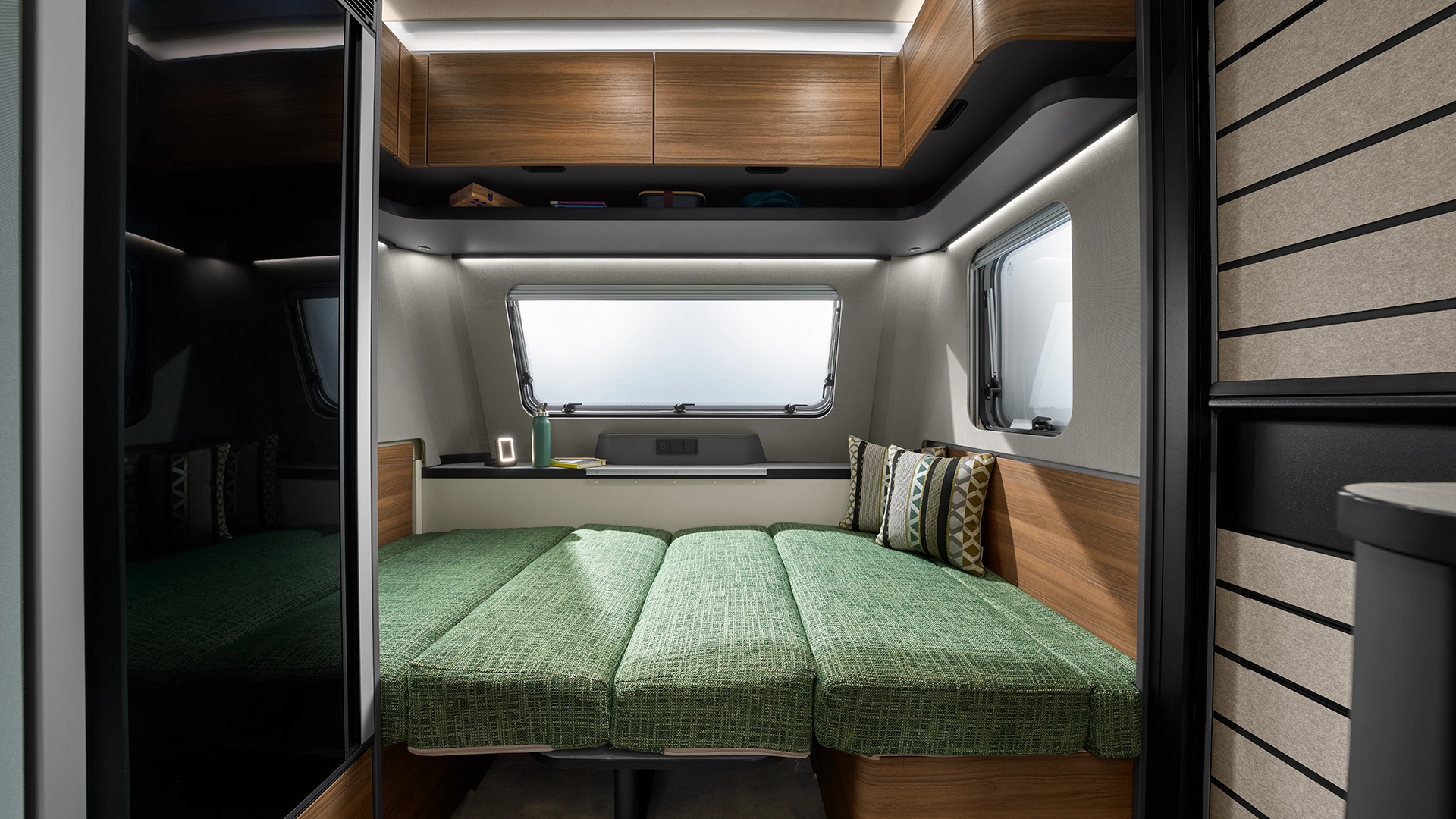

Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect) |

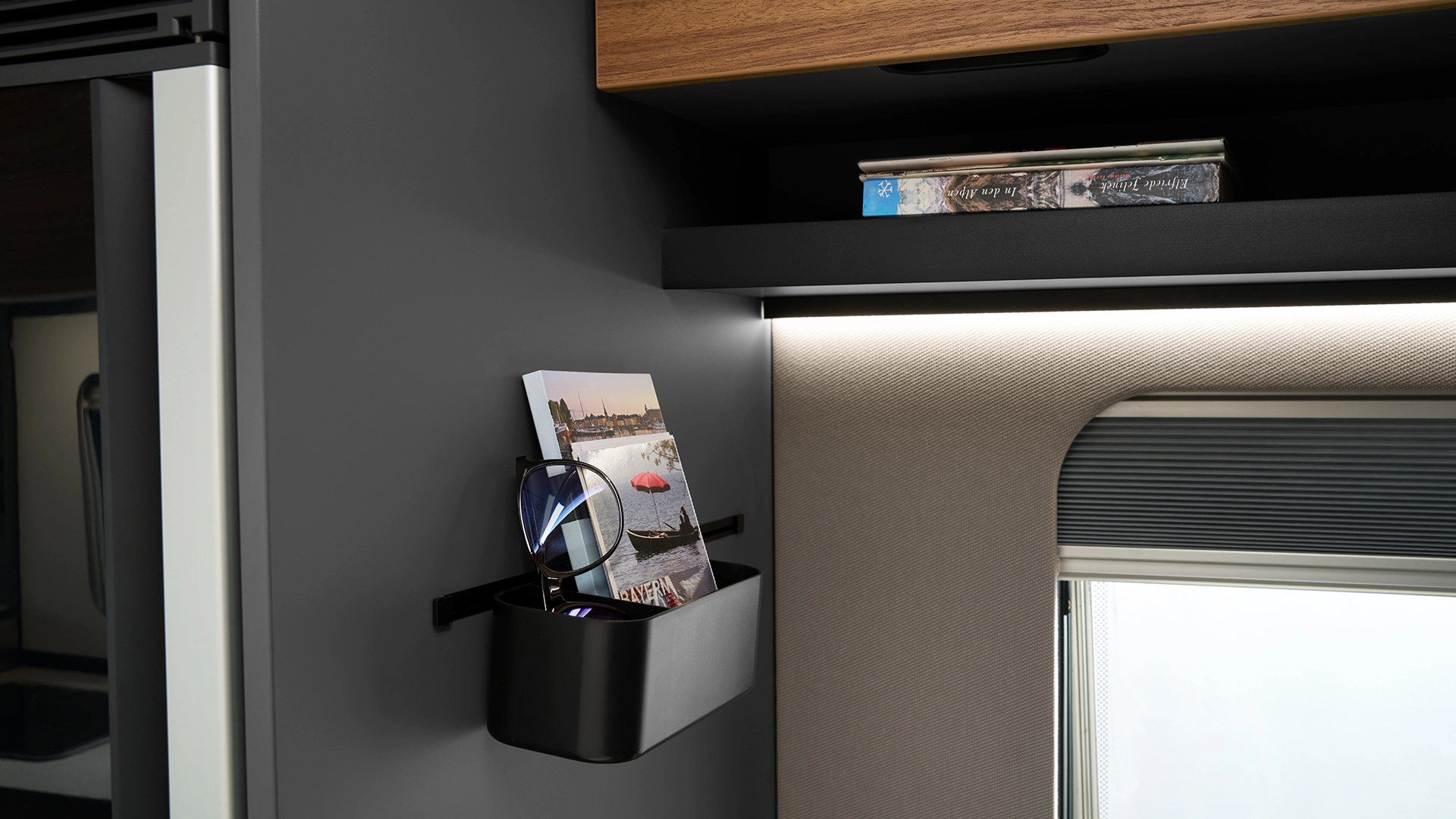

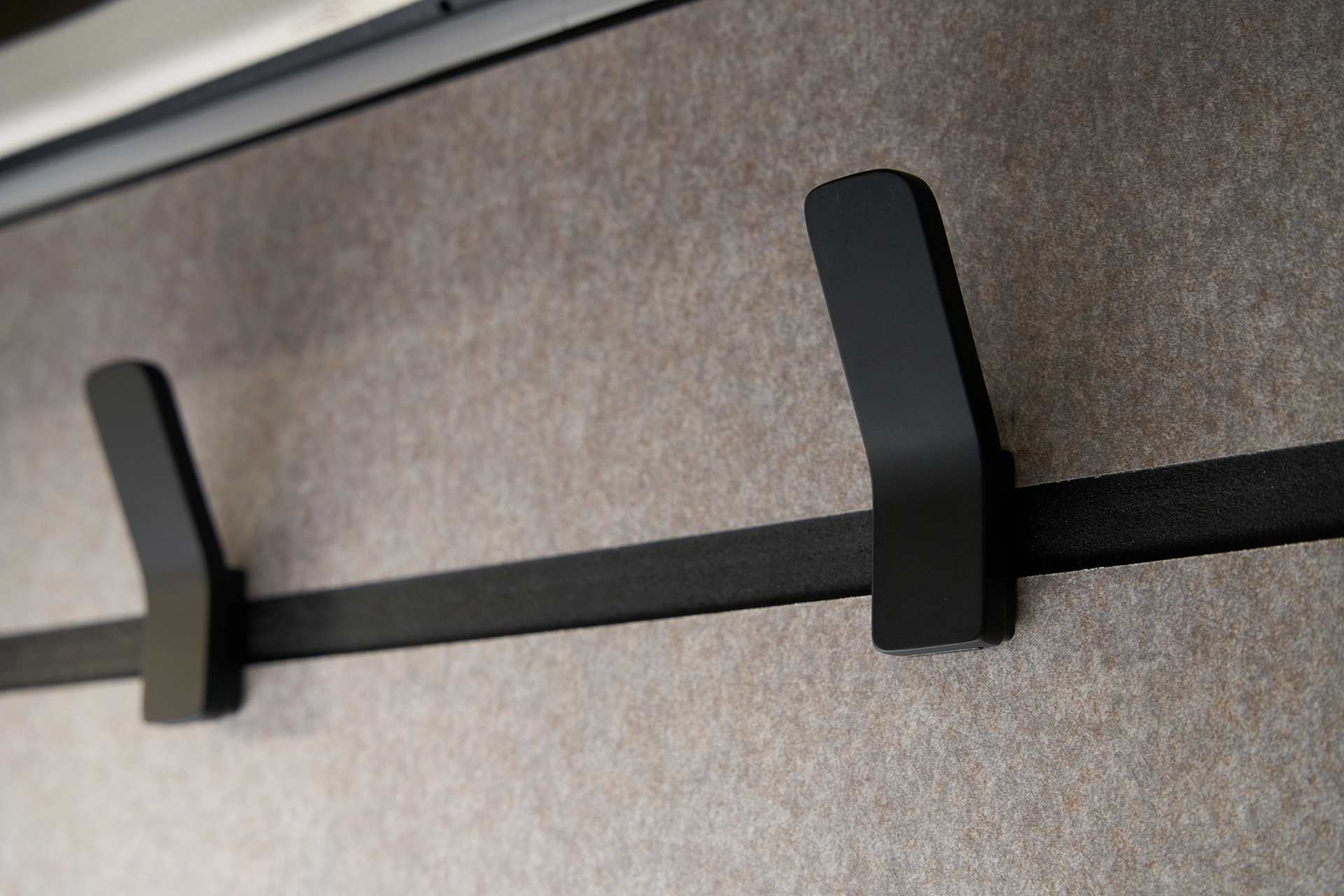

Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |

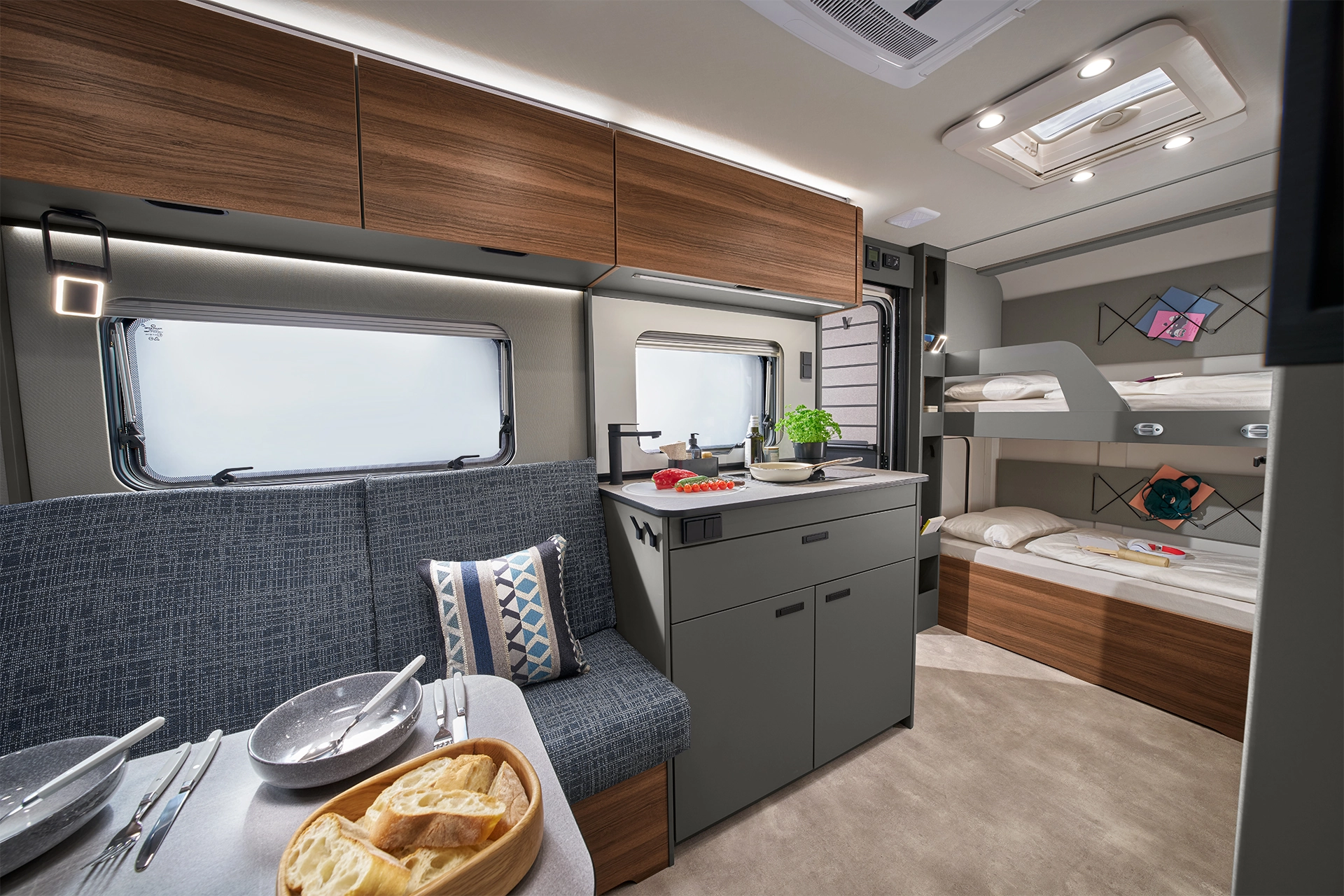

Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Foldable kitchen worktop extension |
Foldable kitchen worktop extension |
Kitchen drawer with Servo Soft feature |
133 l compressor refrigerator incl. freezer compartment and double hinge (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |

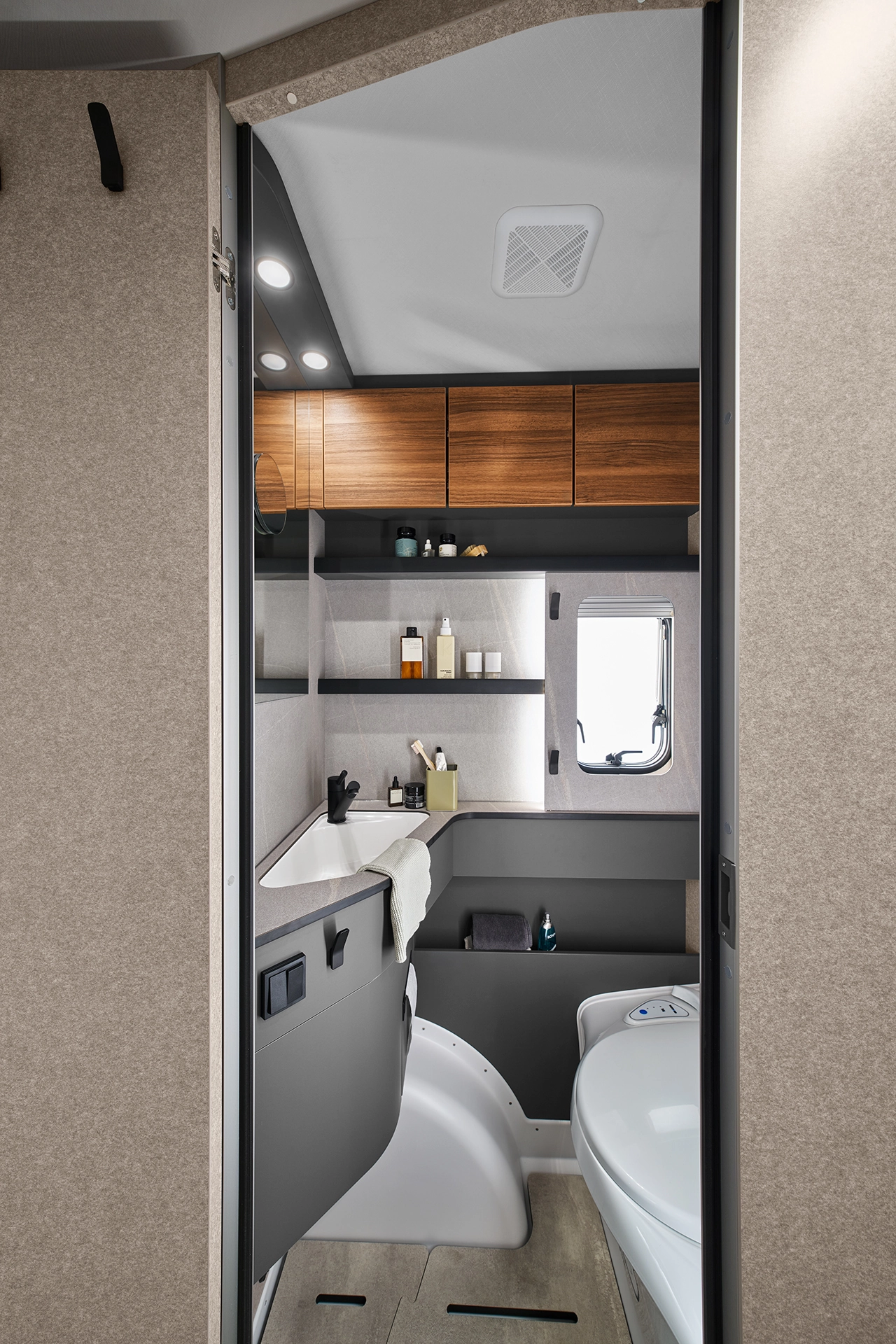

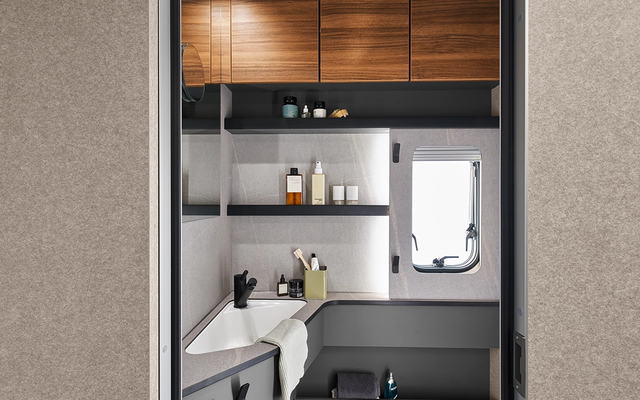

Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Bench toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,400 kg |
Uprating to 1,500 kg |
Uprating to 1,600 kg |
Uprating to 1,700 kg |
Uprating to 1,800 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |

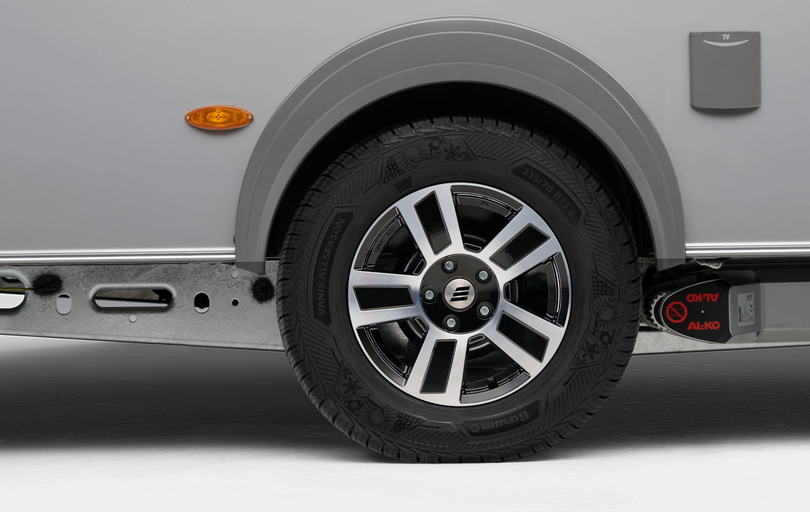

14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Rear window, opening incl. blackout blind and mosquito net |
Side walls in smooth sheet metal, Color: Crystal silver |

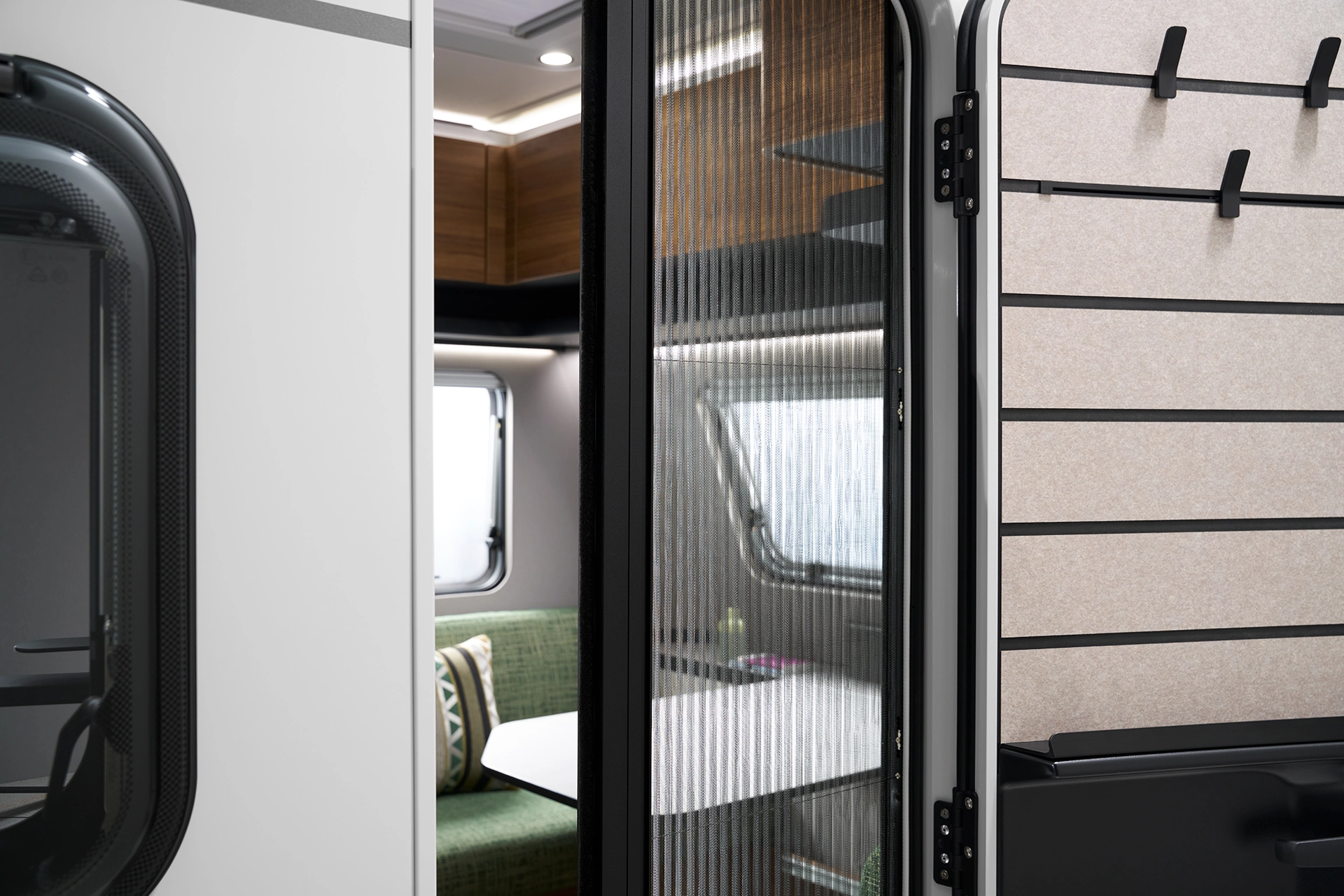

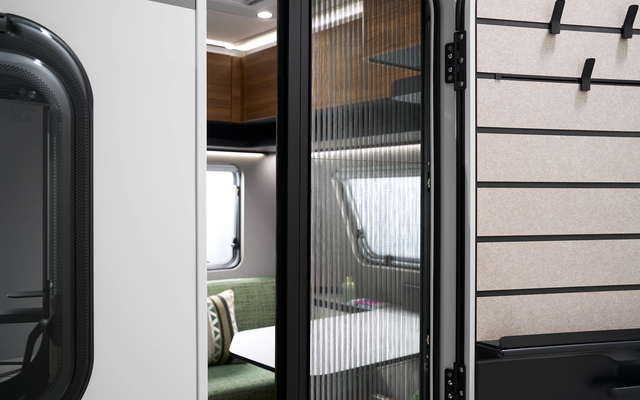

Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 75 x 30 cm, RH side, front |
External storage flap, 75 x 30 cm, LH side, rear |

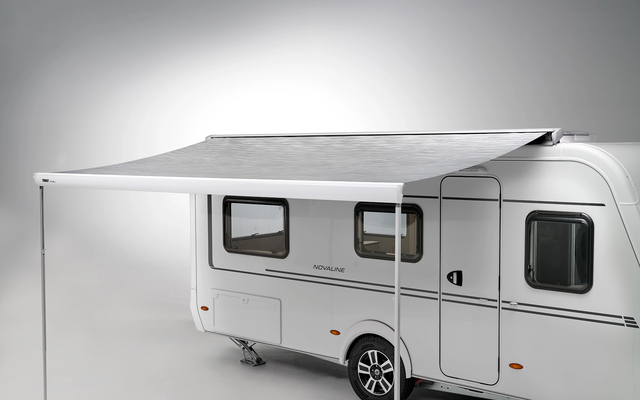

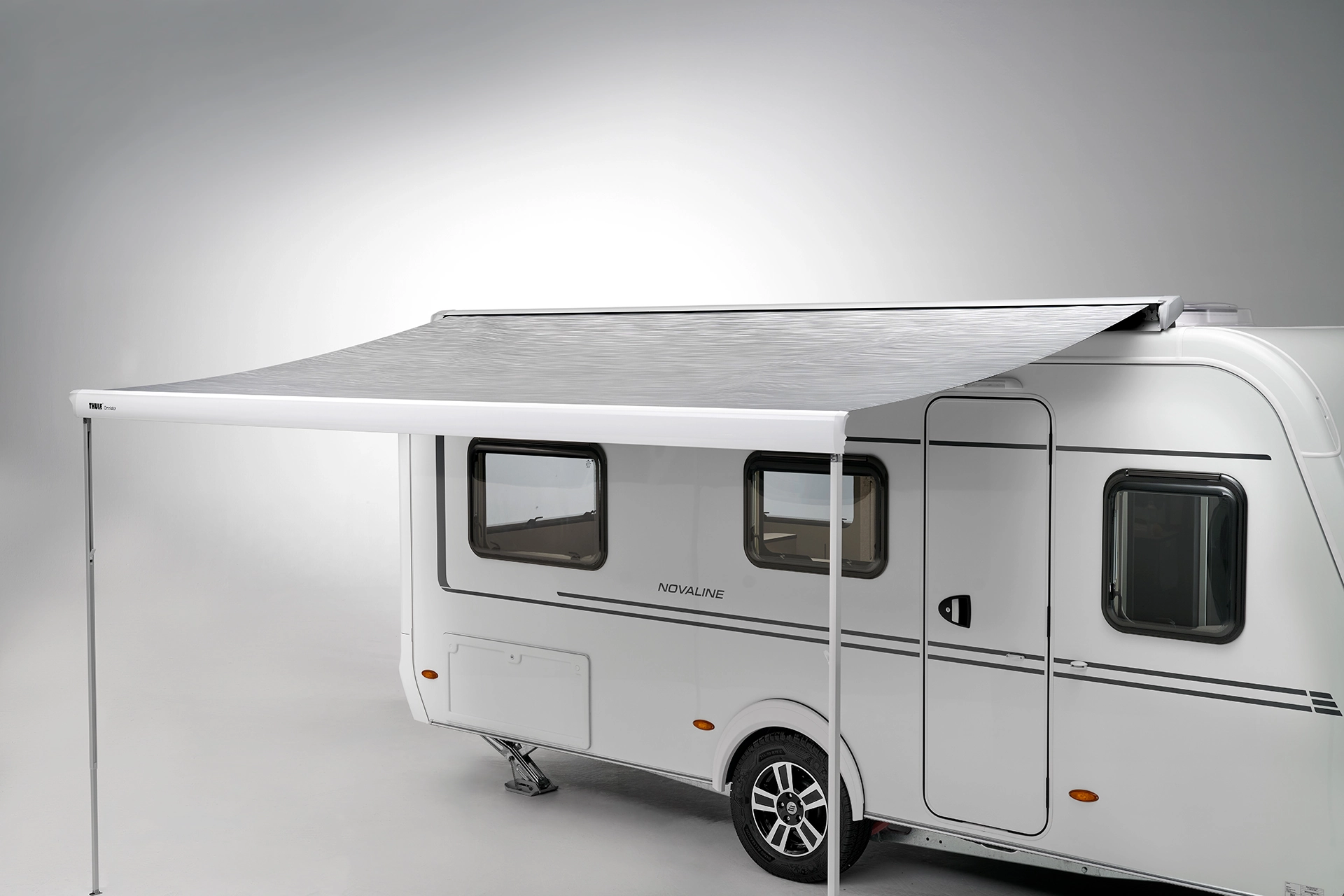

Roof awning Thule Omnistor 6300 with adapter, white housing, 400 x 250 cm (expandable with privacy screen, wind and rain protection) |

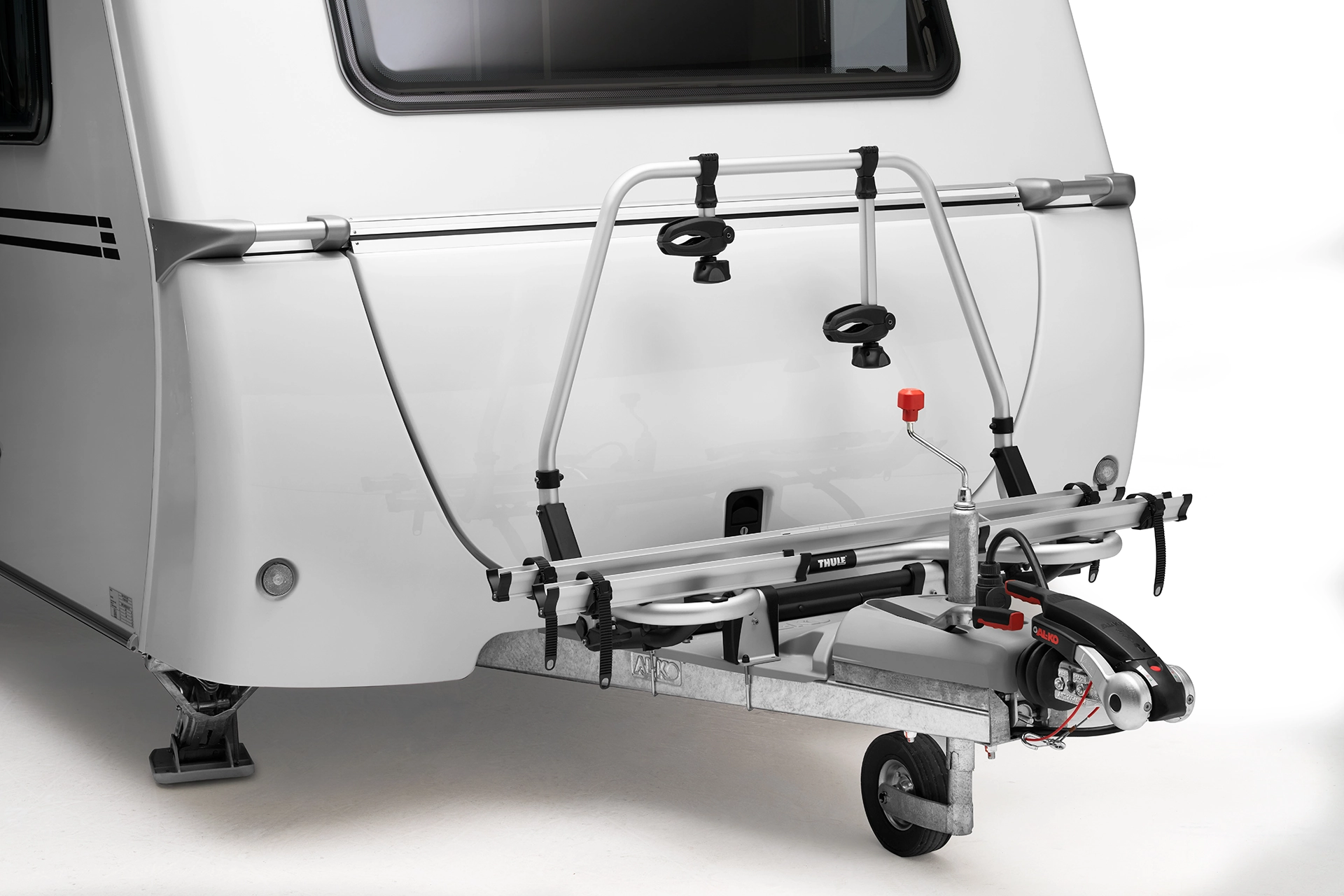

Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |

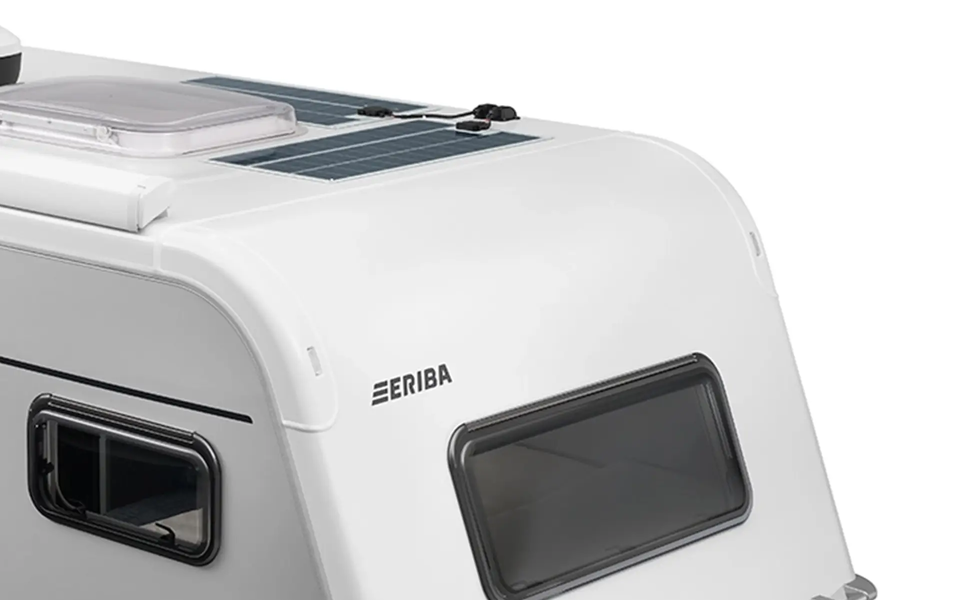

GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |

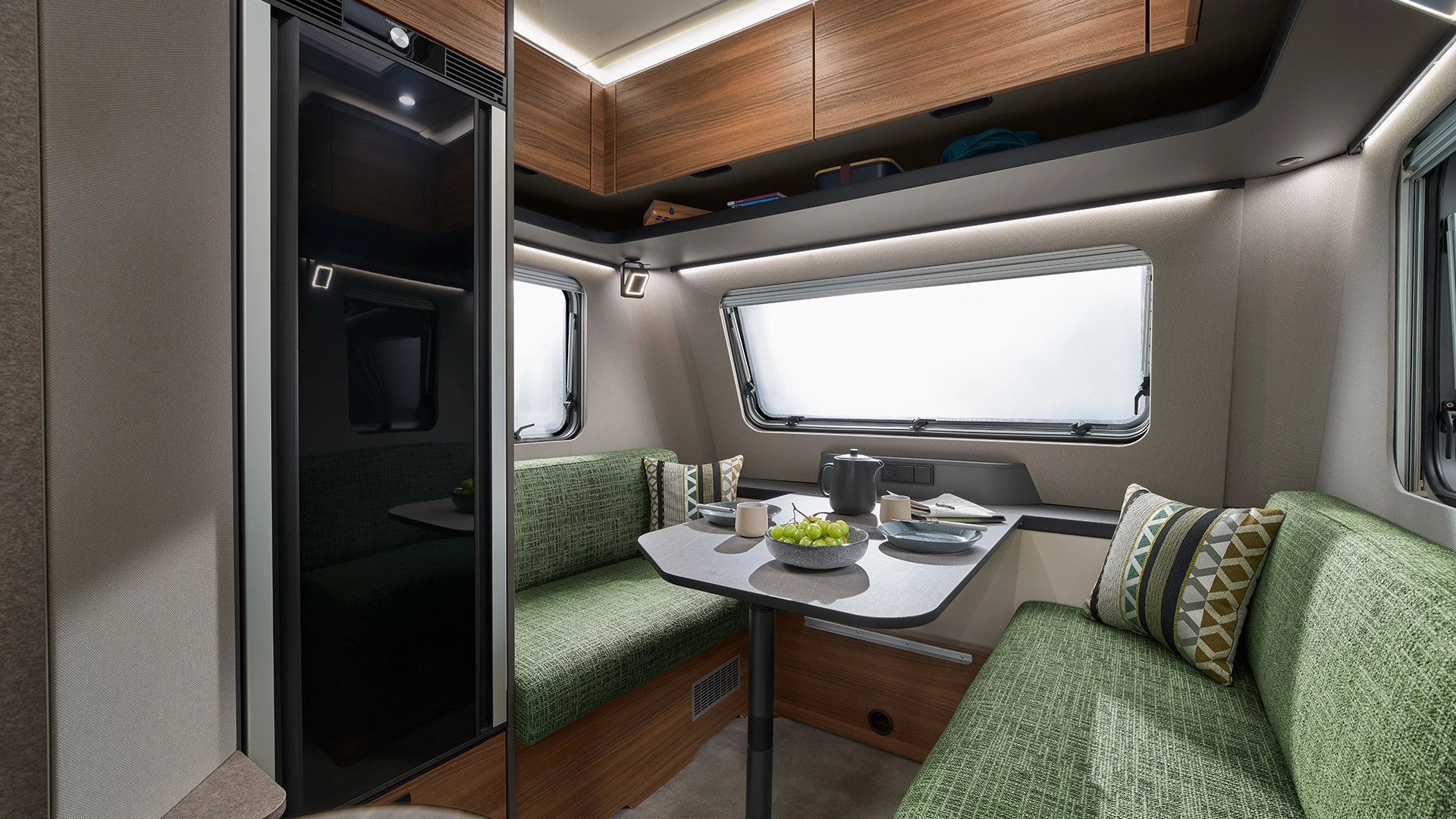

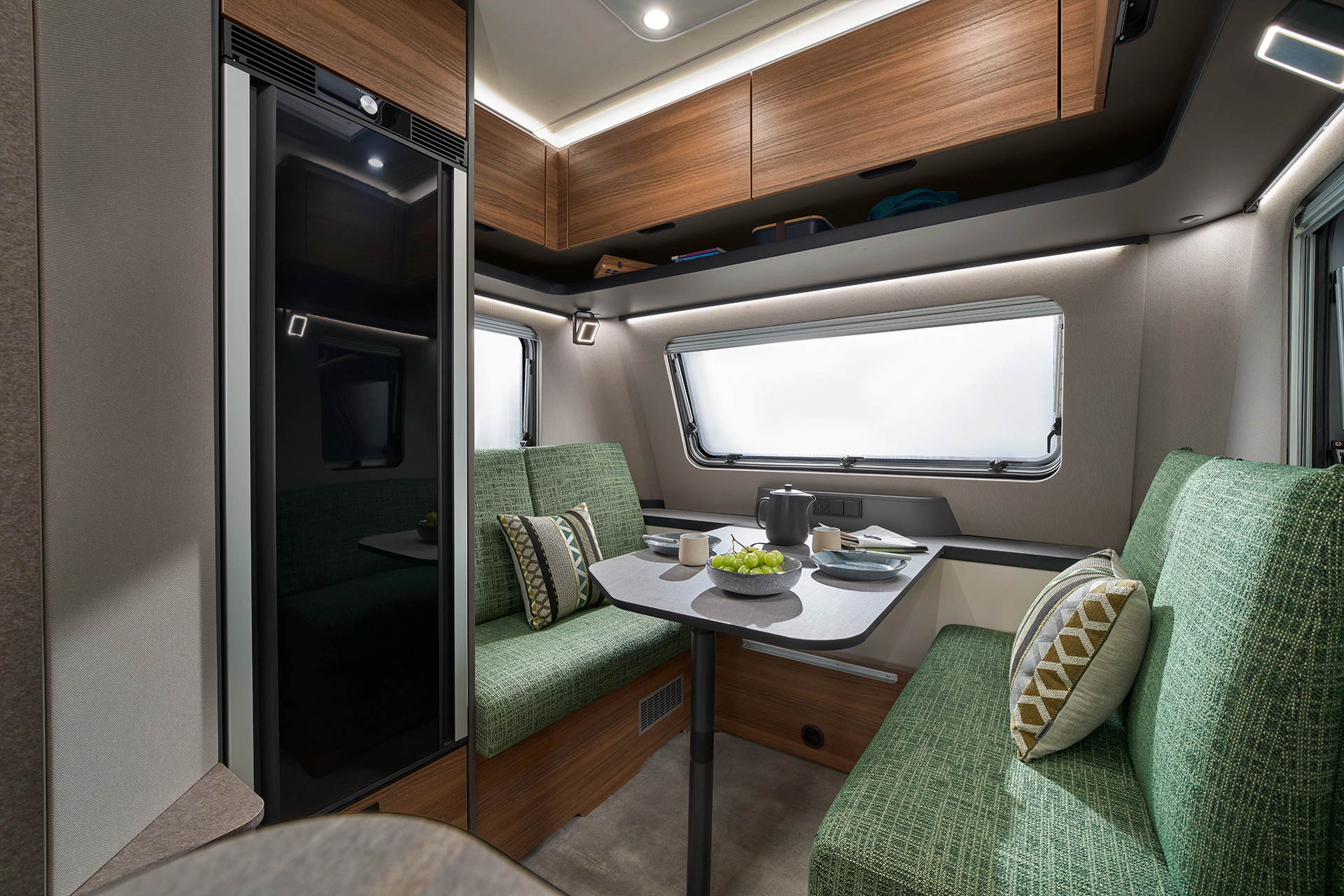

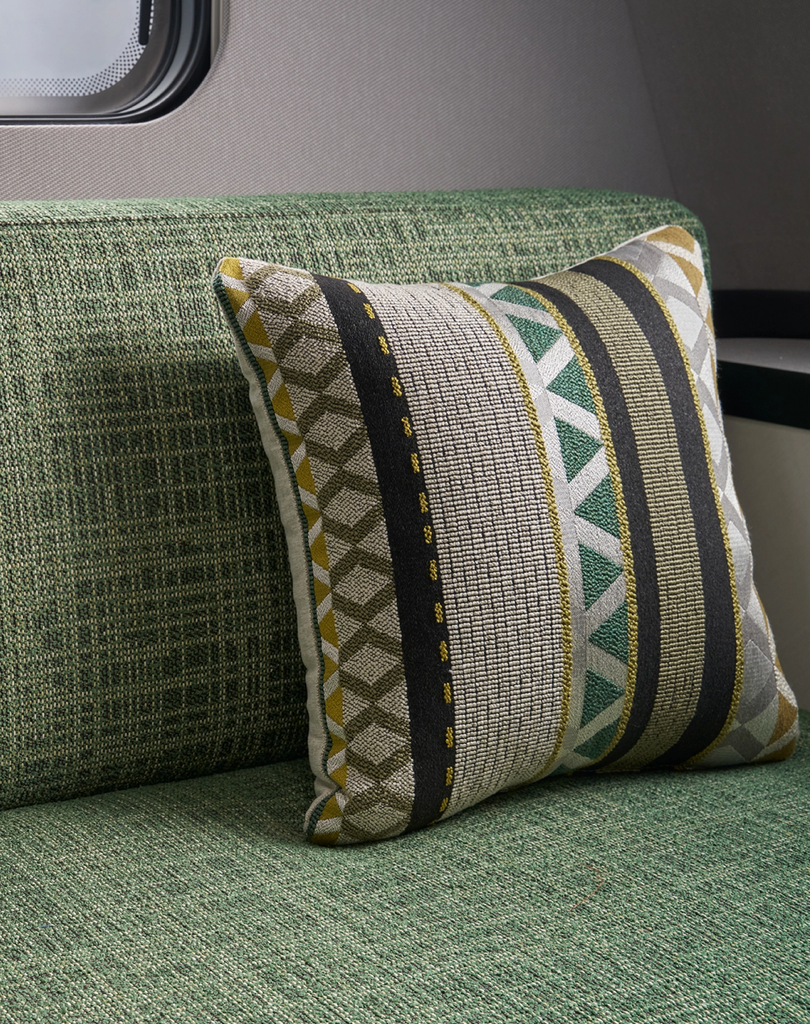

Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
Additional cushion between the longitudinal single beds |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |

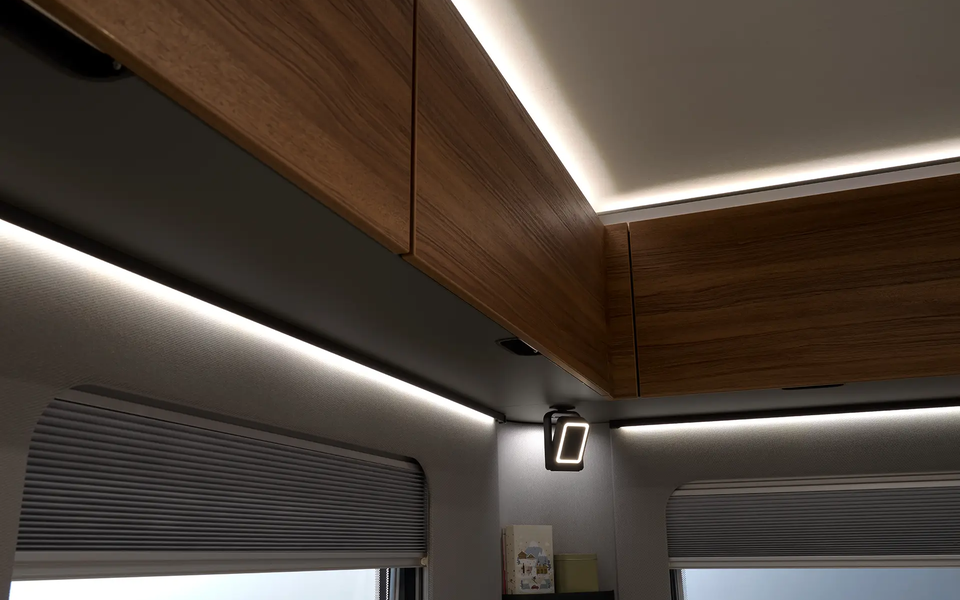

XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |

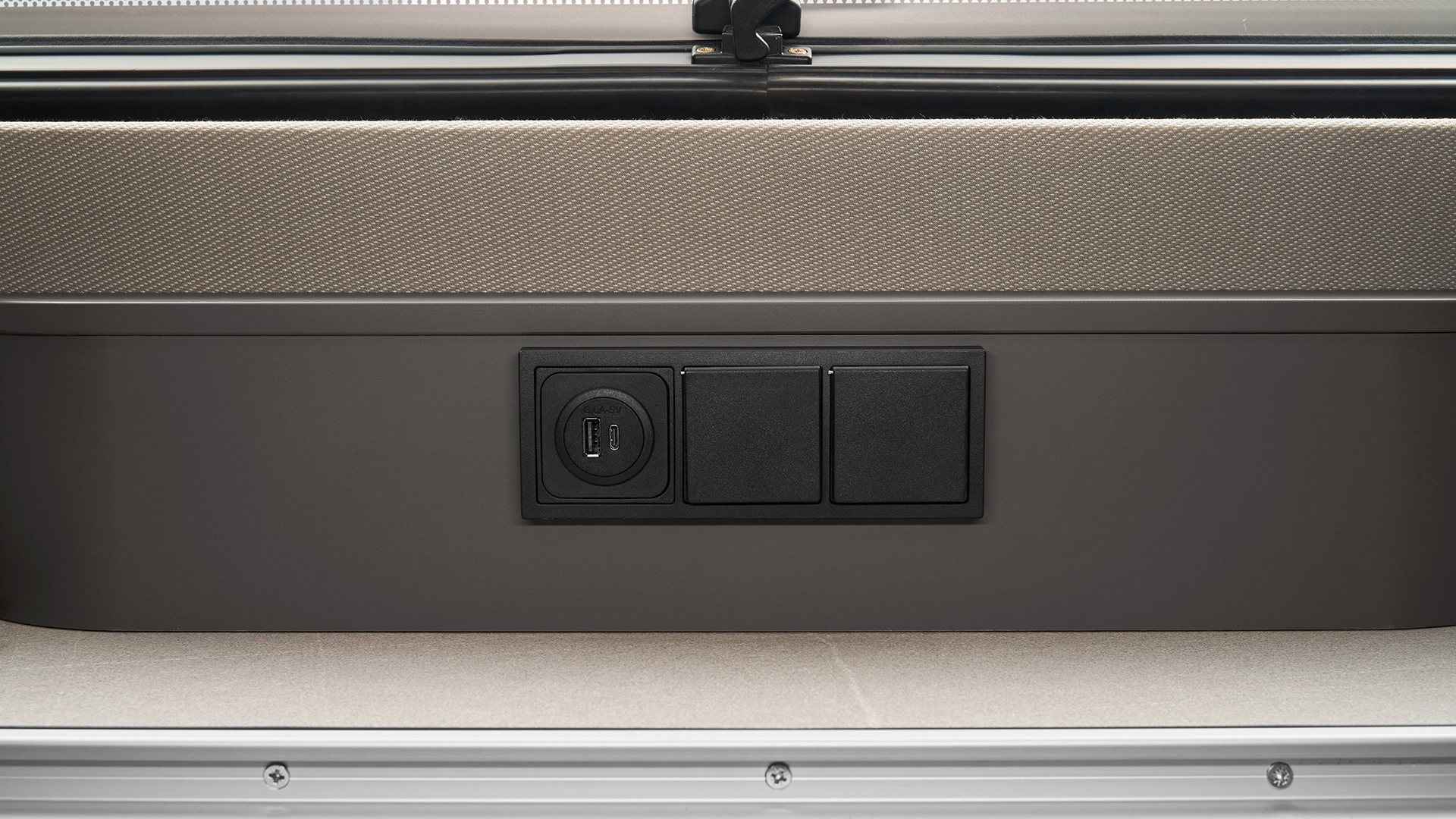

Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |

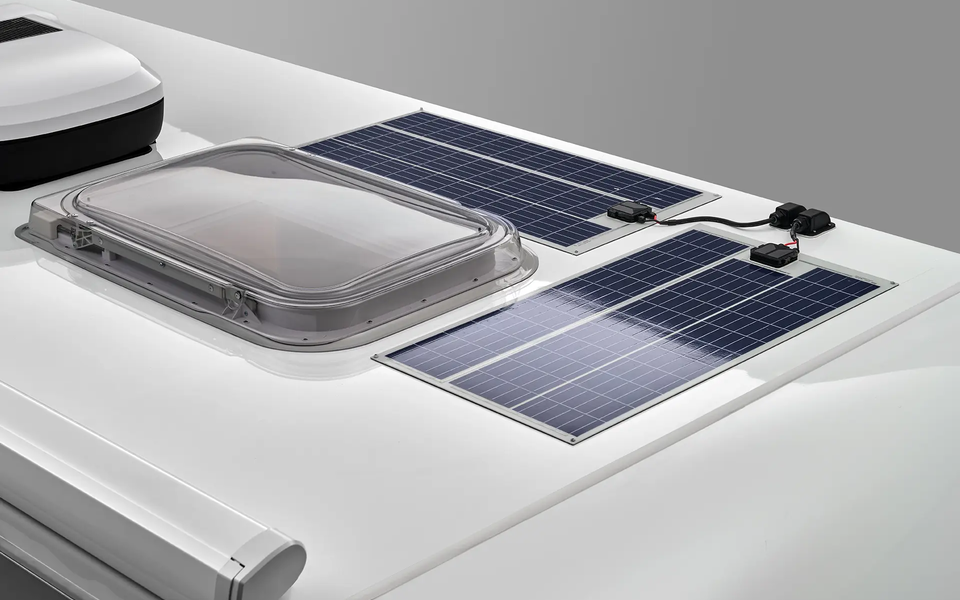

Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |

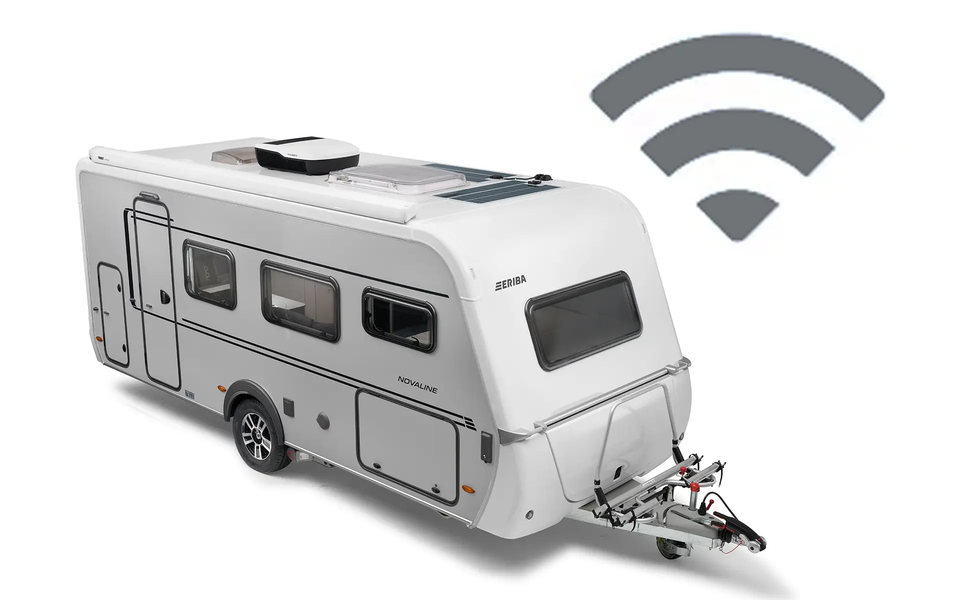

5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
ERIBA Original Services |
---|
12 months new vehicle warranty for caravans |
24 months new vehicle warranty for caravans |
36 months new vehicle warranty for caravans |
Original Accessories (to be ordered directly from Hymer Original Parts) |
---|
Rotary dryer |
ERIBA drawbar cover |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 29990 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 664 / 216 / 254 |
Body length (exterior) (cm) | 548 |
Interior length (cm) | 490 |
Interior width (cm) | 200 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 920 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Rear 100 x 40 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1175 (1116 - 1234)* |
Manufacturer-specified mass for optional equipment (kg)* | 20 |
Technically permissible maximum laden mass (kg)* | 1300 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 2 - 4 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 197 x 105 - 109 |
Bed dimension: Rear bed, L x W (cm) | 194 - 209 x 191 |
Berths | 3 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 133 (12) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 40 cm, RH side, rear |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect) |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Foldable kitchen worktop extension |
Foldable kitchen worktop extension |
Kitchen drawer with Servo Soft feature |
133 l compressor refrigerator incl. freezer compartment and double hinge (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Bench toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,400 kg |
Uprating to 1,500 kg |
Uprating to 1,600 kg |
Uprating to 1,700 kg |
Uprating to 1,800 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Rear window, opening incl. blackout blind and mosquito net |
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 75 x 30 cm, RH side, front |
External storage flap, 75 x 30 cm, LH side, rear |
Roof awning Thule Omnistor 6300 with adapter, white housing, 400 x 250 cm (expandable with privacy screen, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
Additional cushion between the longitudinal single beds |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
ERIBA Original Services |
---|
12 months new vehicle warranty for caravans |
24 months new vehicle warranty for caravans |
36 months new vehicle warranty for caravans |
Original Accessories (to be ordered directly from Hymer Original Parts) |
---|
Rotary dryer |
ERIBA drawbar cover |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 29490 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 603 / 223 / 254 |
Body length (exterior) (cm) | 488 |
Interior length (cm) | 430 |
Interior width (cm) | 208 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 860 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Rear 100 x 40 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1061 (1008 - 1114)* |
Manufacturer-specified mass for optional equipment (kg)* | 40 |
Technically permissible maximum laden mass (kg)* | 1200 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 2 - 4 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 196 x 101 - 125 |
Bed dimension: Rear bed, L x W (cm) | 200 x 140 |
Berths | 3 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 83 (10) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 40 cm, RH side, rear |
Rear window, opening incl. blackout blind and mosquito net |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect) |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Kitchen drawer with Servo Soft feature |
83 l compressor refrigerator incl. freezer compartment (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Swivel toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,300 kg |
Uprating to 1,400 kg |
Uprating to 1,500 kg |
Uprating to 1,600 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 75 x 30 cm, RH side, front |
Roof awning Thule Omnistor 6300 with adapter, white housing, 350 x 250 cm (expandable with privacy screen, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
ERIBA Original Services |
---|
12 months new vehicle warranty for caravans |
24 months new vehicle warranty for caravans |
36 months new vehicle warranty for caravans |
Original Accessories (to be ordered directly from Hymer Original Parts) |
---|
Rotary dryer |
ERIBA drawbar cover |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 29490 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 603 / 223 / 254 |
Body length (exterior) (cm) | 488 |
Interior length (cm) | 430 |
Interior width (cm) | 208 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 860 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Rear 100 x 40 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1061 (1008 - 1114)* |
Manufacturer-specified mass for optional equipment (kg)* | 40 |
Technically permissible maximum laden mass (kg)* | 1200 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 2 - 4 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 196 x 101 - 125 |
Bed dimension: Rear bed, L x W (cm) | 200 x 140 |
Berths | 3 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 83 (10) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 40 cm, RH side, rear |
Rear window, opening incl. blackout blind and mosquito net |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect) |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Kitchen drawer with Servo Soft feature |
83 l compressor refrigerator incl. freezer compartment (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Swivel toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,300 kg |
Uprating to 1,400 kg |
Uprating to 1,500 kg |
Uprating to 1,600 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 75 x 30 cm, RH side, front |
Roof awning Thule Omnistor 6300 with adapter, white housing, 350 x 250 cm (expandable with privacy screen, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
ERIBA Original Services |
---|
12 months new vehicle warranty for caravans |
24 months new vehicle warranty for caravans |
36 months new vehicle warranty for caravans |
Original Accessories (to be ordered directly from Hymer Original Parts) |
---|
Rotary dryer |
ERIBA drawbar cover |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 29490 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 644 / 216 / 254 |
Body length (exterior) (cm) | 528 |
Interior length (cm) | 470 |
Interior width (cm) | 200 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 900 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Front 100 x 40 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1125 (1069 - 1181)* |
Manufacturer-specified mass for optional equipment (kg)* | 72 |
Technically permissible maximum laden mass (kg)* | 1300 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 2 - 4 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 213 x 74 / 198 x 74 / 198 - 213 x 190 (○) |
Bed dimension: Rear bed, L x W (cm) | 197 x 90 - 101 |
Berths | 3 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 83 (10) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 40 cm, RH side, front |
Rear window, opening incl. blackout blind and mosquito net |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |

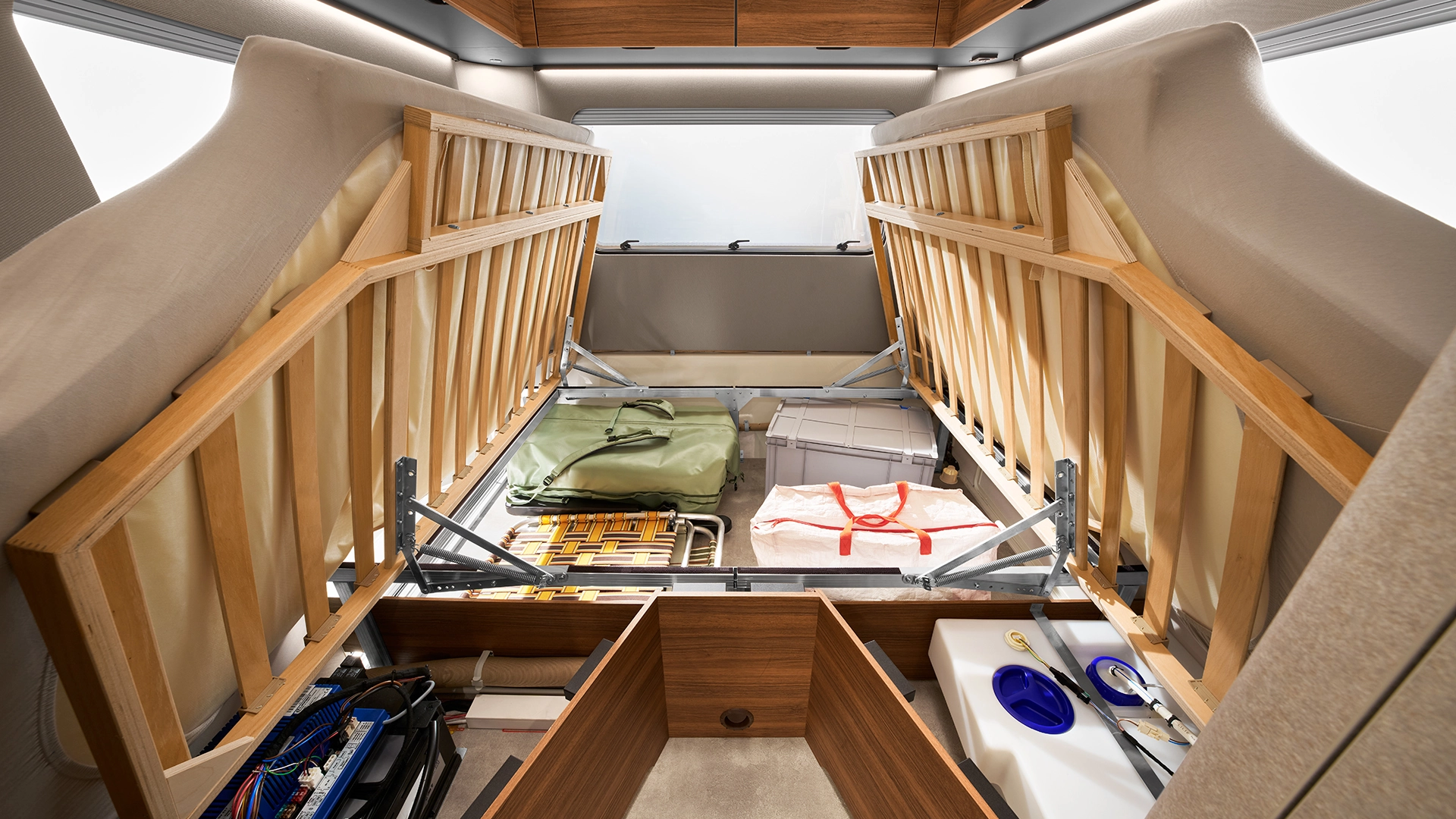

Wooden bed slats under all fixed beds, foldable |
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect) |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Foldable kitchen worktop extension |
Foldable kitchen worktop extension |
Kitchen drawer with Servo Soft feature |
83 l compressor refrigerator incl. freezer compartment (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Bench toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,400 kg |
Uprating to 1,500 kg |
Uprating to 1,600 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 75 x 30 cm, LH side, front |
Thule Omnistor 6300 roof awning with adapter, white housing, 375 x 250 cm (expandable with privacy, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
Rollable bed slats between the longitudinal single beds (incl. additional cushion) |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
ERIBA Original Services |
---|
12 months new vehicle warranty for caravans |
24 months new vehicle warranty for caravans |
36 months new vehicle warranty for caravans |
Original Accessories (to be ordered directly from Hymer Original Parts) |
---|
Rotary dryer |
ERIBA drawbar cover |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 29490 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 644 / 216 / 254 |
Body length (exterior) (cm) | 528 |
Interior length (cm) | 470 |
Interior width (cm) | 200 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 900 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Front 100 x 40 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1125 (1069 - 1181)* |
Manufacturer-specified mass for optional equipment (kg)* | 72 |
Technically permissible maximum laden mass (kg)* | 1300 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 2 - 4 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 213 x 74 / 198 x 74 / 198 - 213 x 190 (○) |
Bed dimension: Rear bed, L x W (cm) | 197 x 90 - 101 |
Berths | 3 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 83 (10) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 40 cm, RH side, front |
Rear window, opening incl. blackout blind and mosquito net |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect) |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Foldable kitchen worktop extension |
Foldable kitchen worktop extension |
Kitchen drawer with Servo Soft feature |
83 l compressor refrigerator incl. freezer compartment (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Bench toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,400 kg |
Uprating to 1,500 kg |
Uprating to 1,600 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 75 x 30 cm, LH side, front |
Thule Omnistor 6300 roof awning with adapter, white housing, 375 x 250 cm (expandable with privacy, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
Rollable bed slats between the longitudinal single beds (incl. additional cushion) |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
ERIBA Original Services |
---|
12 months new vehicle warranty for caravans |
24 months new vehicle warranty for caravans |
36 months new vehicle warranty for caravans |
Original Accessories (to be ordered directly from Hymer Original Parts) |
---|
Rotary dryer |
ERIBA drawbar cover |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 30990 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 694 / 223 / 254 |
Body length (exterior) (cm) | 578 |
Interior length (cm) | 520 |
Interior width (cm) | 208 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 950 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Rear 100 x 40 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1250 (1188 - 1313)* |
Manufacturer-specified mass for optional equipment (kg)* | 132 |
Technically permissible maximum laden mass (kg)* | 1500 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 2 - 4 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 199 x 128 - 165 |
Bed dimension: Rear bed, L x W (cm) | 200 x 140 |
Berths | 4 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 133 (12) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 40 cm, RH side, rear |
Rear window, opening incl. blackout blind and mosquito net |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect) |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Foldable kitchen worktop extension |
Foldable kitchen worktop extension |
Kitchen drawer with Servo Soft feature |
133 l compressor refrigerator incl. freezer compartment and double hinge (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Swivel toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,600 kg |
Uprating to 1,700 kg |
Uprating to 1,800 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 75 x 30 cm, RH side, front |
Thule Omnistor 6300 roof awning with adapter, white housing, 425 x 250 cm (expandable with privacy, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 30990 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 694 / 223 / 254 |
Body length (exterior) (cm) | 578 |
Interior length (cm) | 520 |
Interior width (cm) | 208 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 950 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Rear 100 x 40 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1250 (1188 - 1313)* |
Manufacturer-specified mass for optional equipment (kg)* | 132 |
Technically permissible maximum laden mass (kg)* | 1500 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 2 - 4 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 199 x 128 - 165 |
Bed dimension: Rear bed, L x W (cm) | 200 x 140 |
Berths | 4 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 133 (12) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 40 cm, RH side, rear |
Rear window, opening incl. blackout blind and mosquito net |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect) |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Foldable kitchen worktop extension |
Foldable kitchen worktop extension |
Kitchen drawer with Servo Soft feature |
133 l compressor refrigerator incl. freezer compartment and double hinge (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Swivel toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,600 kg |
Uprating to 1,700 kg |
Uprating to 1,800 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 75 x 30 cm, RH side, front |
Thule Omnistor 6300 roof awning with adapter, white housing, 425 x 250 cm (expandable with privacy, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 31490 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 714 / 223 / 254 |
Body length (exterior) (cm) | 598 |
Interior length (cm) | 540 |
Interior width (cm) | 208 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 970 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Rear 100 x 40 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1283 (1219 - 1347)* |
Manufacturer-specified mass for optional equipment (kg)* | 97 |
Technically permissible maximum laden mass (kg)* | 1500 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 2 - 4 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 199 x 130 - 137 |
Bed dimension: Rear bed, L x W (cm) | 200 x 78 / 210 x 78 / 200 - 210 x 198 (○) |
Berths | 4 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 133 (12) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 40 cm, RH side, rear |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect) |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Foldable kitchen worktop extension |
Foldable kitchen worktop extension |
Kitchen drawer with Servo Soft feature |
133 l compressor refrigerator incl. freezer compartment and double hinge (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Bench toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,600 kg |
Uprating to 1,700 kg |
Uprating to 1,800 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Rear window, opening incl. blackout blind and mosquito net |
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 75 x 30 cm, RH side, front |
External storage flap, 110 x 40 cm, RH side, rear |
Thule Omnistor 6300 roof awning with adapter, white housing, 450 x 250 cm (expandable with privacy, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
Rollable bed slats between the longitudinal single beds (incl. additional cushion) |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 31490 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 714 / 223 / 254 |
Body length (exterior) (cm) | 598 |
Interior length (cm) | 540 |
Interior width (cm) | 208 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 970 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Rear 100 x 40 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1283 (1219 - 1347)* |
Manufacturer-specified mass for optional equipment (kg)* | 97 |
Technically permissible maximum laden mass (kg)* | 1500 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 2 - 4 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 199 x 130 - 137 |
Bed dimension: Rear bed, L x W (cm) | 200 x 78 / 210 x 78 / 200 - 210 x 198 (○) |
Berths | 4 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 133 (12) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 40 cm, RH side, rear |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Optimum sleeping environment by air circulation via openings in the pop-top roof (chimney effect) |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Foldable kitchen worktop extension |
Foldable kitchen worktop extension |
Kitchen drawer with Servo Soft feature |
133 l compressor refrigerator incl. freezer compartment and double hinge (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Bench toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,600 kg |
Uprating to 1,700 kg |
Uprating to 1,800 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Rear window, opening incl. blackout blind and mosquito net |
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 75 x 30 cm, RH side, front |
External storage flap, 110 x 40 cm, RH side, rear |
Thule Omnistor 6300 roof awning with adapter, white housing, 450 x 250 cm (expandable with privacy, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
Rollable bed slats between the longitudinal single beds (incl. additional cushion) |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 30490 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 694 / 223 / 254 |
Body length (exterior) (cm) | 578 |
Interior length (cm) | 520 |
Interior width (cm) | 208 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 950 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Rear 45 x 100 / Front 100 x 60 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1280 (1216 - 1344)* |
Manufacturer-specified mass for optional equipment (kg)* | 92 |
Technically permissible maximum laden mass (kg)* | 1500 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 4 - 6 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 200 x 141 |
Bed dimension: Rear bed, L x W (cm) | 198 x 76 / 200 x 70 |
Bed dimension: Central / middle bed, L x W (cm) | 199 x 110 - 125 |
Berths | 5 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 133 (12) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 60 cm, RH side, front |
External storage flap incl. foldable slatted frame for maximum storage, 45 x 100 cm, RH side |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Bunk bed in the front, lower bunk bed folds up ideal for bulky luggage |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Foldable kitchen worktop extension |
Kitchen drawer with Servo Soft feature |
133 l compressor refrigerator incl. freezer compartment and double hinge (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Bench toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,600 kg |
Uprating to 1,700 kg |
Uprating to 1,800 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 100 x 60 cm, LH side, front |
Thule Omnistor 6300 roof awning with adapter, white housing, 425 x 250 cm (expandable with privacy, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
ERIBA Original Services |
---|
12 months new vehicle warranty for caravans |
24 months new vehicle warranty for caravans |
36 months new vehicle warranty for caravans |
Original Accessories (to be ordered directly from Hymer Original Parts) |
---|
Rotary dryer |
ERIBA drawbar cover |
TÜV approval / CoC |
---|
TÜV approval / CoC |
When purchasing a caravan, it is especially important to select not only an appealing design, but also the right layout. Weight also plays an essential role here. Family, friends, optional equipment, accessories, and baggage – there should be enough space for all of this. At the same time, there are legal and technical limits for configuration and loading. Each caravan is designed for a certain weight which must not be exceeded during travel. This raises a question for caravan buyers: How should I configure my vehicle to accommodate baggage and accessories according to my needs without causing the vehicle to exceed this maximum weight? To help you make this decision, we have provided you some information below that is particularly important when selecting your vehicle from our product range:
Pricing information:
Price | 30490 |
Chassis:
Axle | Mono |
Tire size | 185 R14 C 102 L |
Vehicle dimensions:
Length / Width / Height (cm) | 694 / 223 / 254 |
Body length (exterior) (cm) | 578 |
Interior length (cm) | 520 |
Interior width (cm) | 208 |
Headroom in living area (cm) | 198 |
A-measurement awning (cm) | 950 |
Clearance of storage compartment / garage doors or flap, W x H (cm) | Rear 45 x 100 / Front 100 x 60 |
Weight-related information:
Mass in running order (-/+ 5%) (kg)* | 1280 (1216 - 1344)* |
Manufacturer-specified mass for optional equipment (kg)* | 92 |
Technically permissible maximum laden mass (kg)* | 1500 |
Maximum nose weight (kg) | 100 |
Technology:
Roof type | Fix roof |
Insulation floor / side walls / roof (mm) | 41 / 30 / 30 |
Gas bottle storage (Filling weight) | 2 x 11kg |
Fresh water supply (l) | 45 |
Warm water tank (l) | Gas boiler 10 l (○) |
Sockets: 230 V | 3 - 5 (○) |
Sockets: USB | 4 - 6 (○) |
Interior:
Bed dimension: Front bed, L x W (cm) | 200 x 141 |
Bed dimension: Rear bed, L x W (cm) | 198 x 76 / 200 x 70 |
Bed dimension: Central / middle bed, L x W (cm) | 199 x 110 - 125 |
Berths | 5 |
Burner hob | 2 |
Refrigerator volume incl. freezer (l) | 133 (12) |
Heating type | Gas heating, 3.5 kW |
Chassis |
---|
Fully galvanized lightweight system chassis with galvanized axle body |
14" steel rims |
Extra long drawbar for more driving stability and enough space for a drawbar carrier |
Trailing arm axle with independent wheel suspension |
Automatic brake adjustment (short braking distances and more driving comfort due to gentle braking without jerky acceleration) |
Anti-sway coupling with friction linings and one-hand operation (suppresses rolling and pitching movements) |
Spare wheel bracket located in the gas bottle compartment |
Galvanized plug-in corner steadies |
Body |
---|
Side walls in smooth sheet metal, Color: White |
Front, roof and rear, Colour: White |
Curtained windows with comfortable pleated blinds and ventilation control |
All windows tinted and with double acrylic glazing |
One-piece entrance door with storage shelf and storage net on the inside of the door |
Insulated gas bottle compartment with robust aluminum checker plate floor and low loading edge |
Integrated front storage compartment for 2x11 kg gas bottles, spare wheel, waste water tank, level chocks |
Stable grab handles at the front, continuous manoeuvring handle at the rear |
External storage flap, 100 x 60 cm, RH side, front |
External storage flap incl. foldable slatted frame for maximum storage, 45 x 100 cm, RH side |
Panoramic skylight in living room, double-glazed with LED-lighting, 80 x 50 cm |
Outfitting |
---|
Spacious wardrobe with clothes rail and laundry compartment (shelf height adjustable) |
Lashing eyes in the bed storage compartment |
Fabrics & Furniture finishes |
---|
Furniture finish: Biarritz |
Fabric combination Seattle Stone |
Living and bedroom + lighting |
---|
Ambient lighting: spotlights in the corners of the roof storage cabinet floor in the sleeping area and the seating area (4 spotlights) |
Multifunctional rechargeable light with magnetic mount, additional adhesive pad and USB-C connection for charging |
12 V LED lighting |
LED awning light with motion detector |
All fixed beds with cold foam mattresses with removable and washable mattress covers |
Bed conversion of seating group possible |
Wooden bed slats under all fixed beds, foldable |
Bunk bed in the front, lower bunk bed folds up ideal for bulky luggage |
Multifunctional rail in the seating area, including storage compartment |
High-quality fabric side wall covering for a cosy atmosphere |
Open shelves in the overhead storage compartment in the seating area |
Kitchen |
---|
2-burner stove with safety ignition, electric ignition, flame protection and glass cover |
Cooker control buttons removable for cleaning |
Stainless steel sink |
Foldable kitchen worktop extension |
Kitchen drawer with Servo Soft feature |
133 l compressor refrigerator incl. freezer compartment and double hinge (power source 12 V or 230 V) |
Kitchen lighting: strip light below the wall cabinets |
Bathroom |
---|
Bathroom window can be opened, frosted glass with comfortable pleated blind |
Upper cabinet with mirror and shelves |
Large mirror |
Shower tray |
Bench toilet with level indicator and cassette on wheels |
Installation & Technology |
---|
Smoke detector |
13-pin Jaeger connector |
Caravan power supply with automatic switchover to towing vehicle |
Frost-proof water installation |
45 l fresh water tank |
230 V socket: bathroom, kitchen and living area/seating area and USB socket (includes 1x USB-A, 1x USB-C) in the sleeping area |
Vario Heat Eco heater incl. digital control panel CP plus iNet ready (1.3 / 2.8 kW) |
Warm air blower, electric fan (12 V) |
Warm air blower, electric fan (230 V) |
ERIBA Connect: Control and monitor important components and features of your vehicle conveniently with the ERIBA Connect app - anytime, anywhere. |
Chassis |
---|
Uprating to 1,600 kg |
Uprating to 1,700 kg |
Uprating to 1,800 kg |
Jockey wheel with integrated load indicator |
Cover for drawbar |
Support feet (4 units) for caravan supports: Prevents sinking in or slipping out of the supports |
14’ wheel cover for the steel rims |
14" spare wheel on steel rim |
14" spare wheel on alloy rim |
15" spare wheel on alloy rim |
14' alloy rims, polished 5-star black |
15' alloy rims, polished 5-star black |
Anti-sway system: By gentle braking, the caravan pulls itself back on track |
AL-KO Mammut manoeuvring system with remote control for single axle |
Body |
---|
Side walls in smooth sheet metal, Color: Crystal silver |
Mosquito net door (entire door height), user-friendly thanks to lateral guidance |
External storage flap, 100 x 60 cm, LH side, front |
Thule Omnistor 6300 roof awning with adapter, white housing, 425 x 250 cm (expandable with privacy, wind and rain protection) |
Thule Caravan Superb Short towbar bike carrier for two bikes, max. load capacity 60 kg (suitable for e-bikes) |
GRP roof coating |
Fabrics & Furniture finishes |
---|
Fabric combination Asmara Cinnamon |
Fabric combination Lulea Leaf |
Fabric combination Treviso Lake |
Carpet: Laguna |
Carpet: Samona |
Living and bedroom + lighting |
---|
Comfort cushion for front seating group (supplied loose) |
ERIBA Original fitted sheets, Color: gray |
2 pillows with pillow cases |
XL ambient lighting with indirect lighting for the roof storage cupboards and two additional multifunctional battery lamps |
Kitchen |
---|
Waste bin in the kitchen |
Sink cover with chopping board |
Hybrid cooker (two gas burners, one induction hob) |
Bathroom |
---|
Shower tray insert floor in concrete look |
Shower equipment with shower head and curtain |
Additional magnifying mirror with magnetic holder |
Installation & Technology |
---|
Truma Combi-4 gas heater with integrated 10-litre hot water boiler, heating levels (2000/4000 watts) and CP plus iNet ready digital control panel |
Truma Combi-4 E gas heater with integrated 10-litre hot water boiler, heating levels (2000/ 4000 watts) and electric heating element and CP plus iNet ready digital control panel |
Universal awning socket (230 V, 12 V, TV) incl. interior TV pre-wiring |
City water connection |
External gas socket with shut-off valve |
Gas regulator with crash sensor for two gas bottles (automatic change if gas bottle is empty) |
Gas filter for automatic gas bottle changeover |
Socket package (2 x 230 V sockets in living room and kitchen) and 1x USB double socket |
Body battery (95 Ah AGM) including charger with integrated booster and voltage display in the ERIBA Connect app |
Body battery (80 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Body battery (160 Ah LFP) including charger with integrated booster and charge level indicator in the ERIBA Connect app |
Electric floor tempering in habitation area and central walkway |
22 l waste water tank, rollable (located in the gas bottle compartment) |
Roof AirCon Dometic FreshJet FJX4 2200 incl. remote control (2,200 W cooling capacity) |
ERIBA Connect starter package: tyre pressure sensors, temperature sensor (freely positionable), contact sensor (freely positionable) |
Preparation of solar system (connection cable from battery to roof storage cabinet) |
Solar panel with MPPT controller and display, 2 x 95 W |
Universal awning socket (230 V, 12 V, TV) |
Multimedia |
---|
22” LED flat screen |
TV preparation (FM/AM/DAB antenna incl. splitter and cabling, internal) |
Radio Entertainment System: DAB, Audio Streaming via Wi-Fi, Bluetooth, Apple AirPlay & Digital Signal Processing |
Speaker with wiring |
FM/AM/DAB antenna incl. splitter and cabling incl. TV preparation, internal |
DAB & DSP module |
TV bracket |
5G WIFI router, with external antenna, for own network with long range (SIM card required, not included in the price) |
Packages |
---|
Elegance package |
Elegance package |
Multimedia package I |
Multimedia package II |
Multimedia package III |
Moving package |
Living comfort package |
ERIBA Original Services |
---|
12 months new vehicle warranty for caravans |
24 months new vehicle warranty for caravans |
36 months new vehicle warranty for caravans |
Original Accessories (to be ordered directly from Hymer Original Parts) |
---|
Rotary dryer |
ERIBA drawbar cover |
TÜV approval / CoC |
---|
TÜV approval / CoC |
Whether you choose the elegant smooth sheet metal in Carrara White or the sophisticated Crystal Silver, both versions offer a modern, timeless look. The understated decals add subtle, dynamic highlights.
